High voltage electric double layer capacitor with 1.5F capacitance and 5V DC rating. Features radial leaded, through-hole mounting with a 5.3mm lead pitch and 0.6mm lead diameter. Operates within a -40°C to 60°C temperature range, offering 1000 hours of life and 15µA leakage current. Equivalent Series Resistance (ESR) is 100mΩ. This component is halogen-free and RoHS compliant.
PackageRadial
Capacitance1.5F
Voltage Rating5V
MountingThrough Hole
Quick Jump:
Technical Specifications
Eaton PM-5R0V155-R technical specifications.
General
Capacitance
1.5F
Package/Case
Radial
Construction
RADIAL
Depth
10.5mm
ESR (Equivalent Series Resistance)
100mR
Height
10.5mm
Height - Seated (Max)
0.906inch
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5.3mm
Leakage Current
15uA
Length
0.839inch
Life (Hours)
1000Hour
Max Operating Temperature
60°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
PowerStor PM
Termination
Radial
Tolerance
80%
Voltage Rating
5V
DC Rated Voltage
5V
Weight
0.016oz
Width
0.433inch
Compliance
RoHS
Compliant
Datasheet
Eaton PM-5R0V155-R Datasheet
Download the complete datasheet for Eaton PM-5R0V155-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

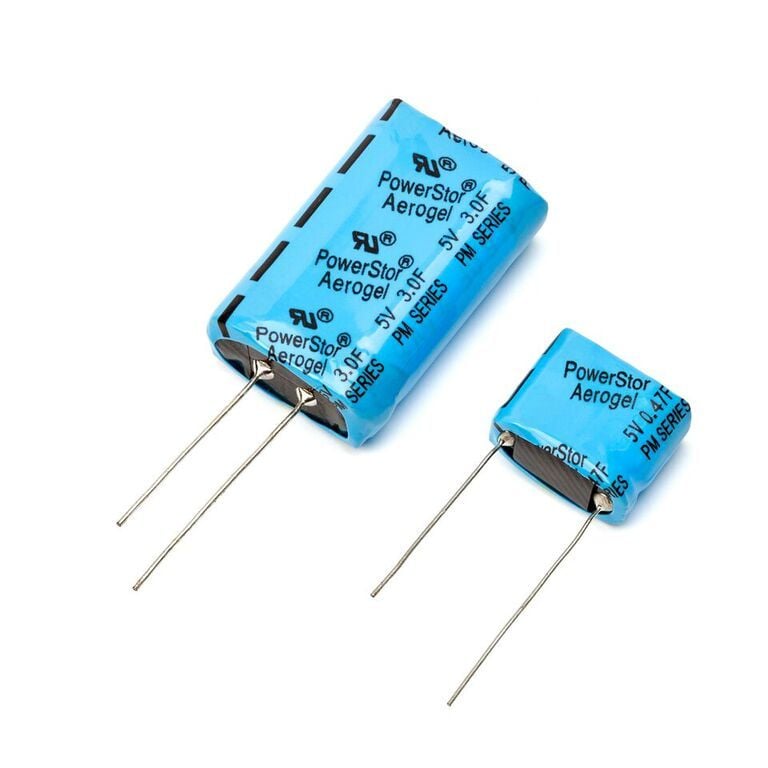

Product Images
