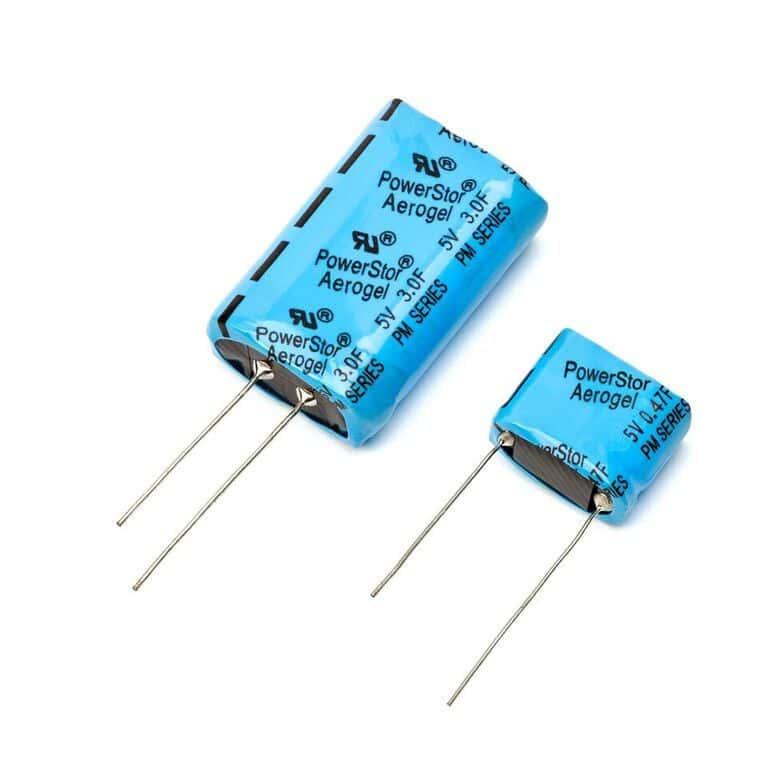

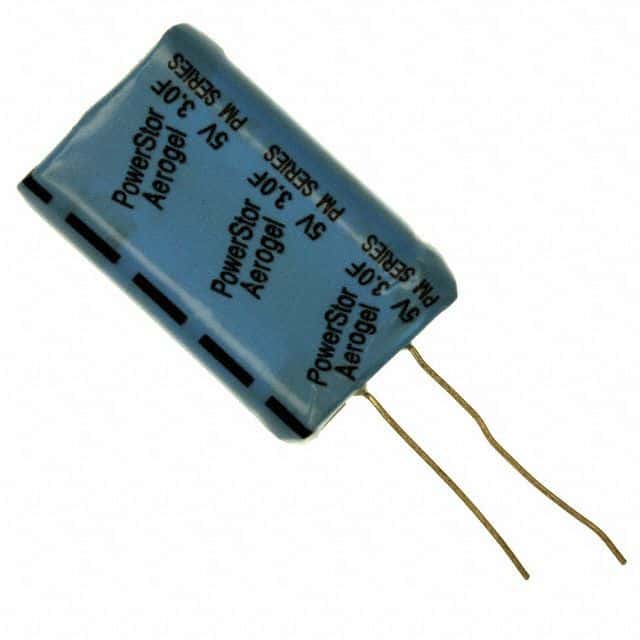

High voltage electric double layer capacitor with 3F capacitance and 5V DC rated voltage. Features a radial leaded, through-hole mount package with a 5.3mm lead pitch and 0.6mm lead diameter. Offers 70mΩ ESR, 20µA leakage current, and operates within a -40°C to 60°C temperature range. This RoHS compliant component is designed for 1000 hours of life.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton PM-5R0V305-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Eaton PM-5R0V305-R technical specifications.
| Capacitance | 3F |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 10.5mm |
| ESR (Equivalent Series Resistance) | 70mR |
| Height | 10.5mm |
| Height - Seated (Max) | 1.28inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5.3mm |
| Leakage Current | 20uA |
| Length | 20.8mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PM |
| Termination | Radial |
| Tolerance | 80% |
| Voltage | 5V |
| Voltage Rating | 5V |
| DC Rated Voltage | 5V |
| Weight | 0.256oz |
| Width | 0.433inch |
| RoHS | Compliant |
