Surface mount fixed inductor featuring a shielded drum core with ferrite material. Offers 4.7µH inductance with a 20% tolerance, tested at 100kHz. Rated for 1.46A DC current and 1.29A saturation current, with a low DC resistance of 117.7mΩ. Housed in a 2020 package, this component operates from -40°C to 85°C and is RoHS compliant.
Package2020
Current1.02A
Current Rating1.46A
MountingSurface Mount
Quick Jump:
Technical Specifications
Eaton SD12-4R7-R technical specifications.
General
Package/Case
2020
Core Material
Ferrite
Current
1.02A
Current Rating
1.46A
DC Current
1.46A
DC Resistance (DCR)
117.7mR
Depth
5.2mm
Height
1.2mm
Height - Seated (Max)
0.047inch
Inductance
4.7uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
5.2mm
Max DC Current
1.29A
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RMS Current (Irms)
1.46A
RoHS Compliant
Yes
Saturation Current
1.29A
Series
SD
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Weight
0.032oz
Width
0.204inch
Compliance
RoHS
Compliant
Datasheet
Eaton SD12-4R7-R Datasheet
Download the complete datasheet for Eaton SD12-4R7-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

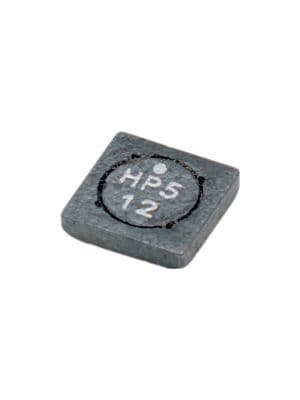

Product Images
