Surface mount fixed inductor featuring a shielded drum core construction. Offers 3.3µH inductance with a 20% tolerance, tested at 100kHz. Rated for a maximum DC current of 1.47A and a saturation current of 1.47A, with a DC resistance of 54.7mΩ. Operates within a temperature range of -40°C to 85°C and is RoHS compliant. Packaged in tape and reel for automated assembly.
PackageNonstandard
Current Rating2.17A
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
Eaton SD20-3R3-R technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 2.17A |
| DC Resistance (DCR) | 54.7mR |
| Height | 2mm |
| Height - Seated (Max) | 0.079inch |
| Inductance | 3.3uH |
| Lead Free | Lead Free |
| Length | 0.204inch |
| Max DC Current | 1.47A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2900 |
| Packaging | Tape and Reel |
| Rated Current-Max | 2.17A |
| RoHS Compliant | Yes |
| Saturation Current | 1.47A |
| Series | SD |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.032oz |
| Width | 5.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Eaton SD20-3R3-R Datasheet
Download the complete datasheet for Eaton SD20-3R3-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

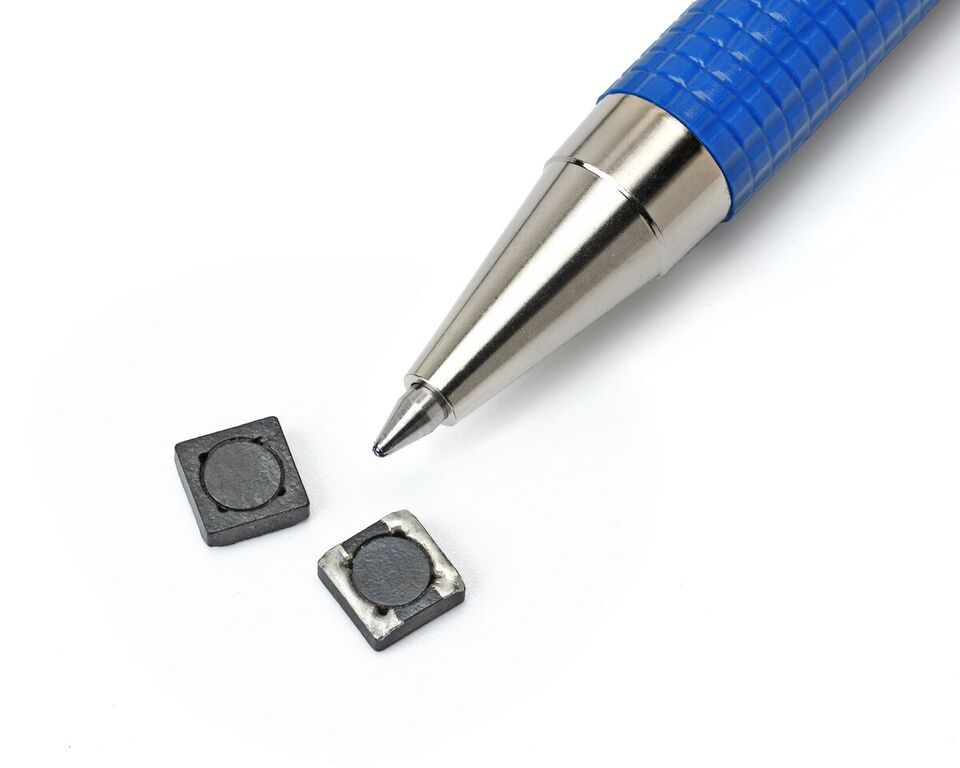

Product Images
