Surface mount shielded drum core inductor with 3.3µH inductance and 30% tolerance. Features a ferrite core, 1.22A DC current rating, and 0.113Ω DC resistance. Operates from -40°C to 125°C, with a saturation current of 1.59A. Packaged in tape and reel for automated assembly.
PackageNonstandard
Resistance0.113R
Current Rating1.22A
MountingSurface Mount
Quick Jump:
Technical Specifications
Eaton SD3118-3R3-R technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.22A |
| DC Current | 1.22A |
| DC Resistance (DCR) | 113mR |
| Depth | 3.2mm |
| Height | 1.8mm |
| Height - Seated (Max) | 0.071inch |
| Inductance | 3.3uH |
| Lead Free | Lead Free |
| Length | 0.122inch |
| Max DC Current | 1.59A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 4100 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 0.113R |
| RoHS Compliant | Yes |
| Saturation Current | 1.59A |
| Series | SD3118 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Weight | 0.016oz |
| Width | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Eaton SD3118-3R3-R Datasheet
Download the complete datasheet for Eaton SD3118-3R3-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

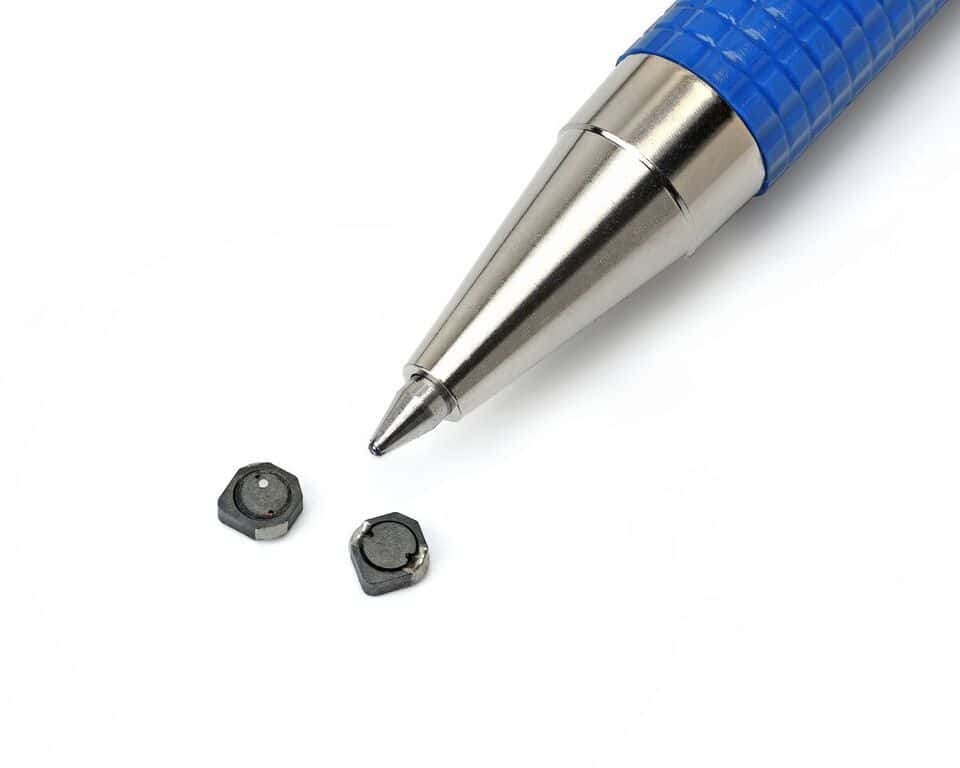

Product Images
