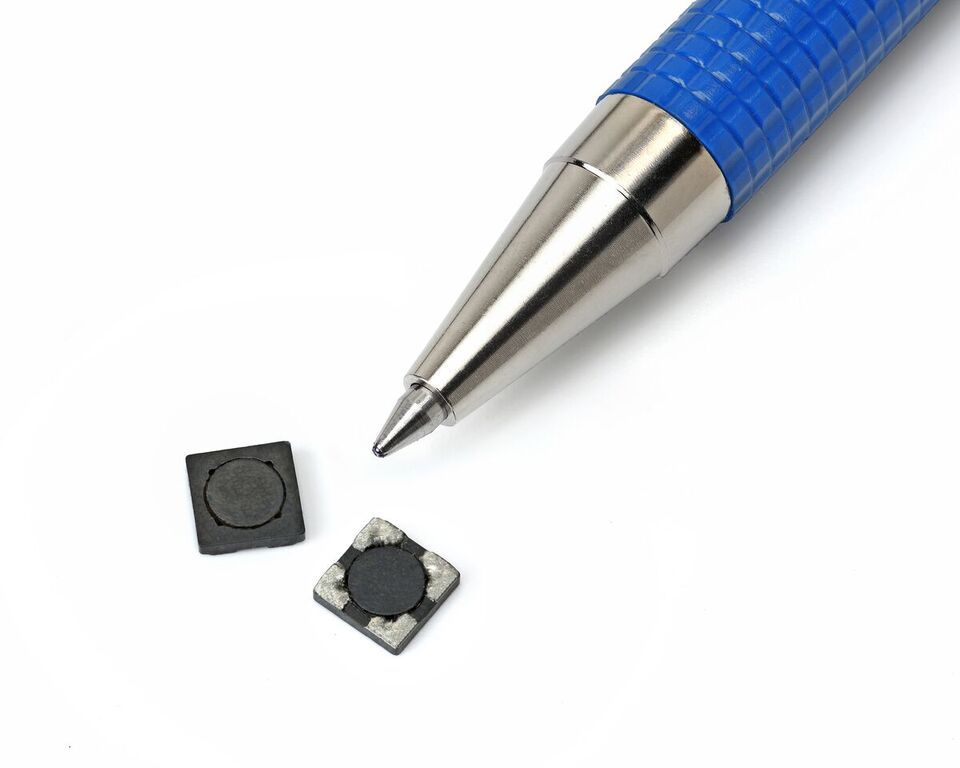

Surface mount power inductor featuring a shielded drum core construction with ferrite material. Offers selectable inductance values of 4.7µH (series) and 4.41µH (parallel) with a 20% tolerance at 100kHz. Supports a maximum DC current of 1.45A and RMS current of 1.12A, with a DC resistance of 199mΩ (parallel) or 795.9mΩ (series). Operating temperature range spans from -40°C to 125°C, housed in a 2020 package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton SDQ12-4R7-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 2020 |
| Core Material | Ferrite |
| Current | 560mA |
| DC Resistance (DCR) | 398mR |
| DC Resistance (DCR) - Parallel | 199mR |
| DC Resistance (DCR) - Series | 795.9mR |
| Depth | 5.2mm |
| Height | 0.047inch |
| Inductance | 4.7uH |
| Inductance - Parallel | 4.41uH |
| Inductance - Series | 17.64uH |
| Inductance Tolerance | 20% |
| Inductor Type | POWER INDUCTOR |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max DC Current | 1.45A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Coils | 2 |
| Package Quantity | 3800 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.12A |
| RoHS Compliant | Yes |
| Series | SDQ |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.032oz |
| Width | 0.205inch |
| RoHS | Compliant |
