Fast-acting chip fuse, 500mA current rating, 63V DC voltage rating, and 32V AC voltage rating. Features a 1206 (3216 metric) ceramic SMD case with solder pad termination, suitable for PCB surface mounting. Operating temperature range from -65°C to 125°C. UL, CSA, and cULus approved. Packaged in tape and reel.
PackageCSMD
Resistance980mR
Voltage Rating63V
Current Rating500mA
Quick Jump:
Technical Specifications
Eaton TR/3216FF500-R technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Ceramic |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | CSMD |
| Current Rating | 500mA |
| Depth | 1.6mm |
| Fuse Current | 500mA |
| Fuse Size | 3.2 X 1.6 X 0.89mm |
| Height | 0.89mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (AC) | 32V |
| Max Voltage Rating (DC) | 63V |
| Mount | PCB, Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Primary Type | Chip |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 980mR |
| Series | 3216FF |
| Termination | SMD/SMT |
| Voltage Rating | 63V |
| Voltage Rating (AC) | 32V |
| DC Rated Voltage | 63V |
| Weight | 0.016oz |
| Width | 1.6mm |
| Working Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Eaton TR/3216FF500-R Datasheet
Download the complete datasheet for Eaton TR/3216FF500-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

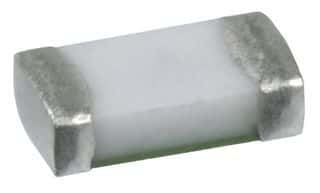

Product Images
