Fast-acting SMD fuse, 10A current rating, 125V AC maximum voltage rating, and 72V DC rated voltage. Features a 2410 case code (6125 metric) with solder pad termination for surface mounting. Operating temperature range from -55°C to 125°C, with a DC cold resistance of 7.3mR. Packaged in tape and reel for automated assembly, with cULus approvals.
Package2410
Resistance7.3mR
Voltage Rating125V
Current Rating10A
Quick Jump:
Technical Specifications
Eaton TR2/6125FF10-R technical specifications.
General
| Approvals | cULus |
| Case Code (Imperial) | 2410 |
| Case Code (Metric) | 6125 |
| Package/Case | 2410 |
| Current Rating | 10A |
| DC Cold Resistance | 7.3mR |
| Fuse Current | 10A |
| Height | 2.72mm |
| Length | 6.1mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 72V |
| Mount | Surface Mount |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 7.3mR |
| RoHS Compliant | Yes |
| Series | 6125FF |
| Termination | SMD/SMT |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 72V |
| Weight | 0.032oz |
| Width | 2.72mm |
Compliance
| RoHS | Compliant |
Datasheet
Eaton TR2/6125FF10-R Datasheet
Download the complete datasheet for Eaton TR2/6125FF10-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

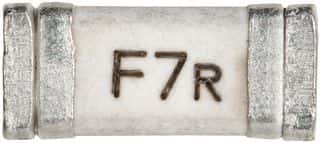

Product Images
