Technical Specifications
Eaton UP2-100-R technical specifications.
General
| Package/Case | Nonstandard |
| Current Rating | 4.3A |
| DC Resistance (DCR) | 29.9mR |
| Height | 0.231inch |
| Height - Seated (Max) | 0.231inch |
| Inductance | 10uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 0.541inch |
| Max DC Current | 3.3A |
| Mount | Surface Mount |
| Package Quantity | 600 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Saturation Current | 3.3A |
| Series | UNI-PAC™ 2 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.096oz |
| Width | 0.345inch |
Compliance
| RoHS | Compliant |
Datasheet
Eaton UP2-100-R Datasheet
Download the complete datasheet for Eaton UP2-100-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

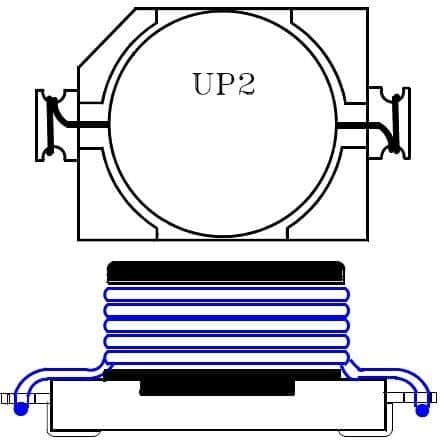

Product Images
