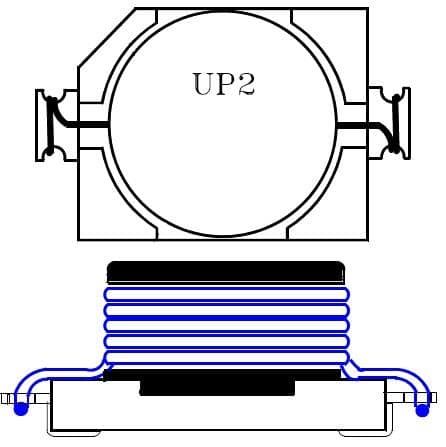

The Eaton UP2-221-R is a surface mount fixed inductor with a 220uH inductance value and a 20% tolerance. It has a maximum DC current rating of 930mA and a saturation current of 620mA. The inductor is packaged in a nonstandard case and is lead free. It is available in quantities of 600 per reel and is suitable for use in a variety of applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton UP2-221-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Nonstandard |
| Current Rating | 930mA |
| DC Resistance (DCR) | 636mR |
| Depth | 8.76mm |
| Height | 0.231inch |
| Height - Seated (Max) | 0.231inch |
| Inductance | 220uH |
| Lead Free | Lead Free |
| Length | 0.541inch |
| Max DC Current | 930mA |
| Mount | Surface Mount |
| Package Quantity | 600 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Saturation Current | 620mA |
| Series | UNI-PAC™ 2 |
| Shielding | Unshielded |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.08oz |
| Width | 0.345inch |
| RoHS | Compliant |
