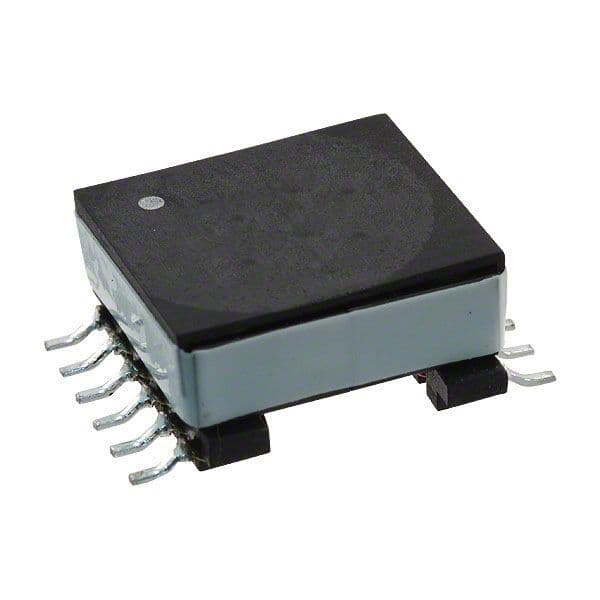

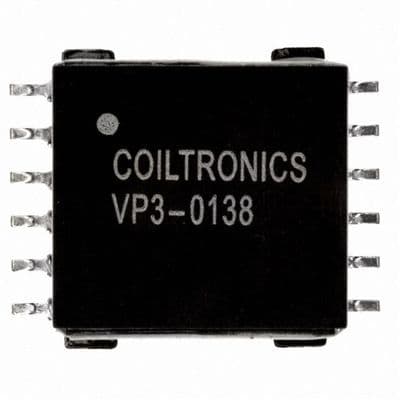

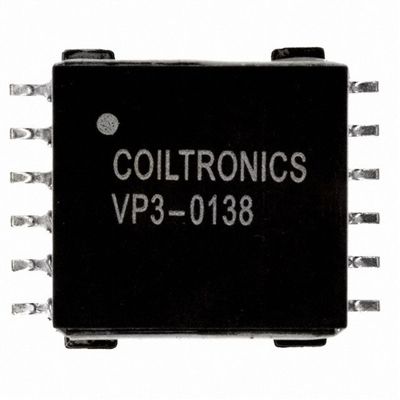

Surface mount fixed inductor with 11.2µH inductance and 20% tolerance. Features a ferrite core, 1.47A RMS current, and 3.54A current rating. DC resistance is 61mΩ. Operating temperature range is -40°C to 85°C. Packaged on tape and reel.
PackageSMD/SMT
Current1.47A
Current Rating3.54A
MountingSurface Mount
Quick Jump:
Technical Specifications
Eaton VP3-0138-R technical specifications.
General
Package/Case
SMD/SMT
Core Material
Ferrite
Current
1.47A
Current Rating
3.54A
DC Resistance (DCR)
61mR
DC Resistance (DCR) - Parallel
61mR
Depth
22.3mm
Height
8.4mm
Inductance
11.2uH
Inductance - Parallel
11.2uH
Inductance - Series
403.2uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
17.1mm
Max DC Current
590mA
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Coils
6
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Yes
RMS Current (Irms)
1.47A
Series
VERSA-PAC®
Shielding
Unshielded
Termination
SMD/SMT
Tolerance
20%
Turns Ratio
1:1
Type
General Purpose
Weight
0.272oz
Width
0.878inch
Compliance
RoHS
Not CompliantNo
Datasheet
Eaton VP3-0138-R Datasheet
Download the complete datasheet for Eaton VP3-0138-R to view detailed technical specifications.
