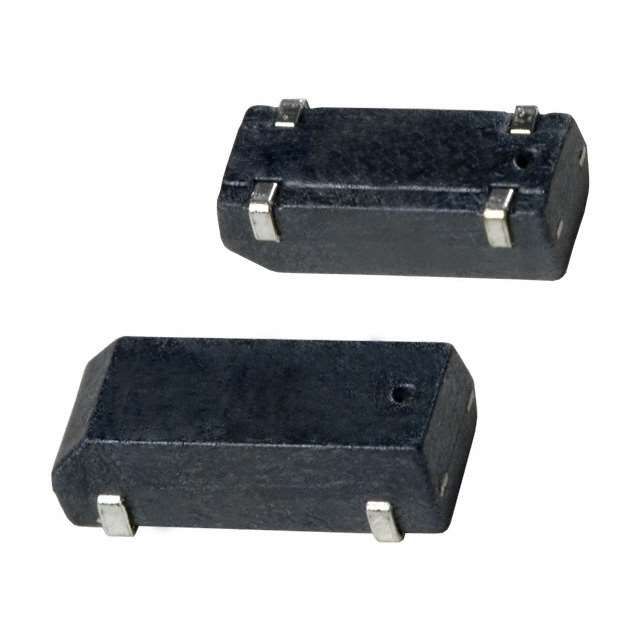

Surface mount quartz crystal operating at 32.768kHz with a frequency tolerance of 20ppm. Features a load capacitance of 6pF and an equivalent series resistance of 50kR. Designed for operation across a temperature range of -40°C to 85°C. Packaged in cut tape for efficient assembly.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the ECS ECS-.327-6-17-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
ECS ECS-.327-6-17-TR technical specifications.
| ESR (Equivalent Series Resistance) | 50kR |
| Frequency | 32.768kHz |
| Frequency Tolerance | 20ppm |
| Lead Free | Contains Lead |
| Load Capacitance | 6pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | No |
| Series | ECX-306 |
| RoHS | Not Compliant |
Download the complete datasheet for ECS ECS-.327-6-17-TR to view detailed technical specifications.
