10MHz fundamental quartz crystal, SMD, 2-pin, with 30ppm frequency tolerance and 50ppm frequency stability. Features 18pF load capacitance and 50 Ohm ESR. Operates within a -10°C to 70°C temperature range. Housed in a 13.2mm x 4.8mm x 4.3mm package, this lead-free, RoHS compliant component is supplied on tape and reel.
Frequency10MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-100-18-5PX-TR technical specifications.
General
| ESR (Equivalent Series Resistance) | 50R |
| Frequency | 10MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 4.3mm |
| Lead Free | Lead Free |
| Length | 13.2mm |
| Load Capacitance | 18pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CSM-7X |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 4.8mm |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-100-18-5PX-TR Datasheet
Download the complete datasheet for ECS ECS-100-18-5PX-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

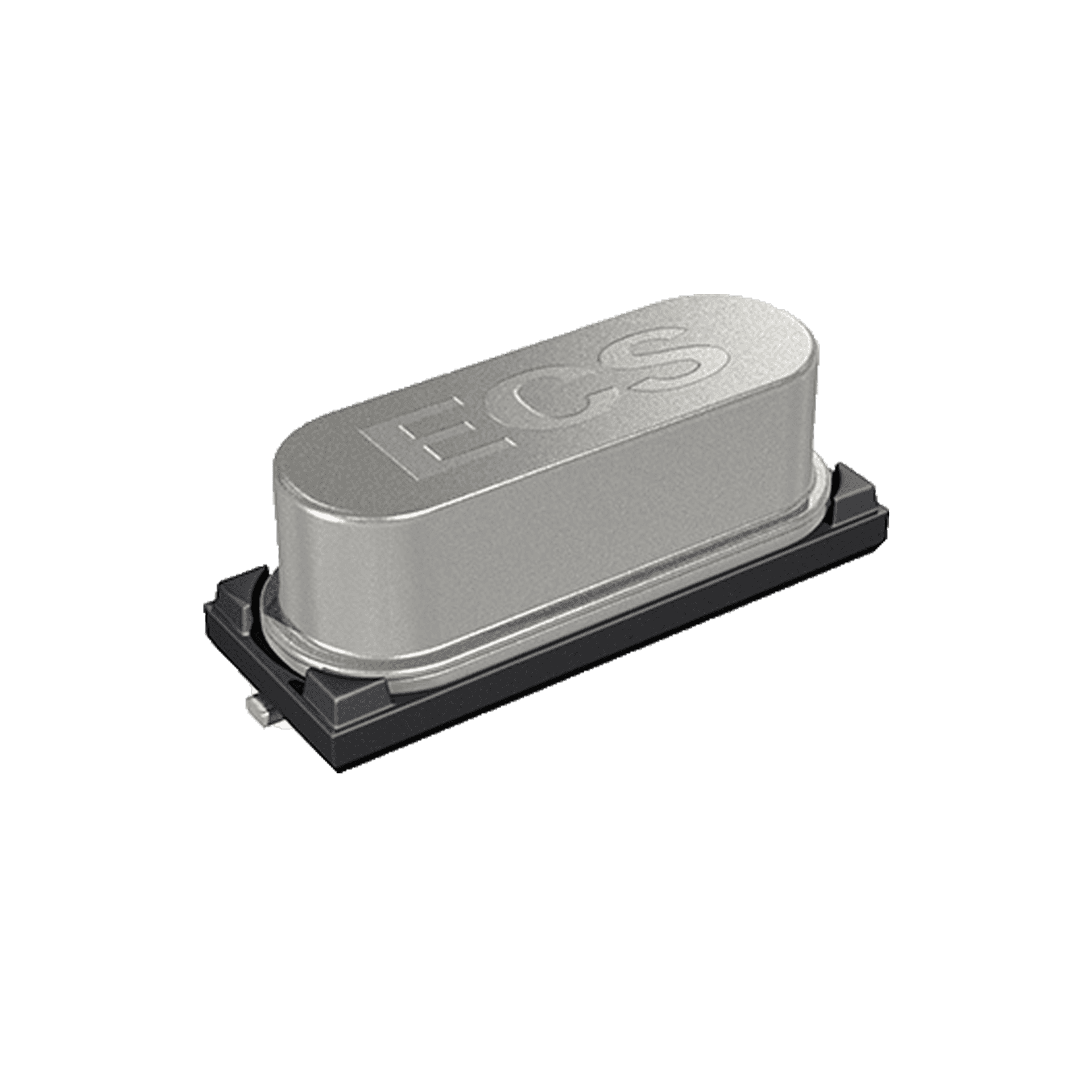

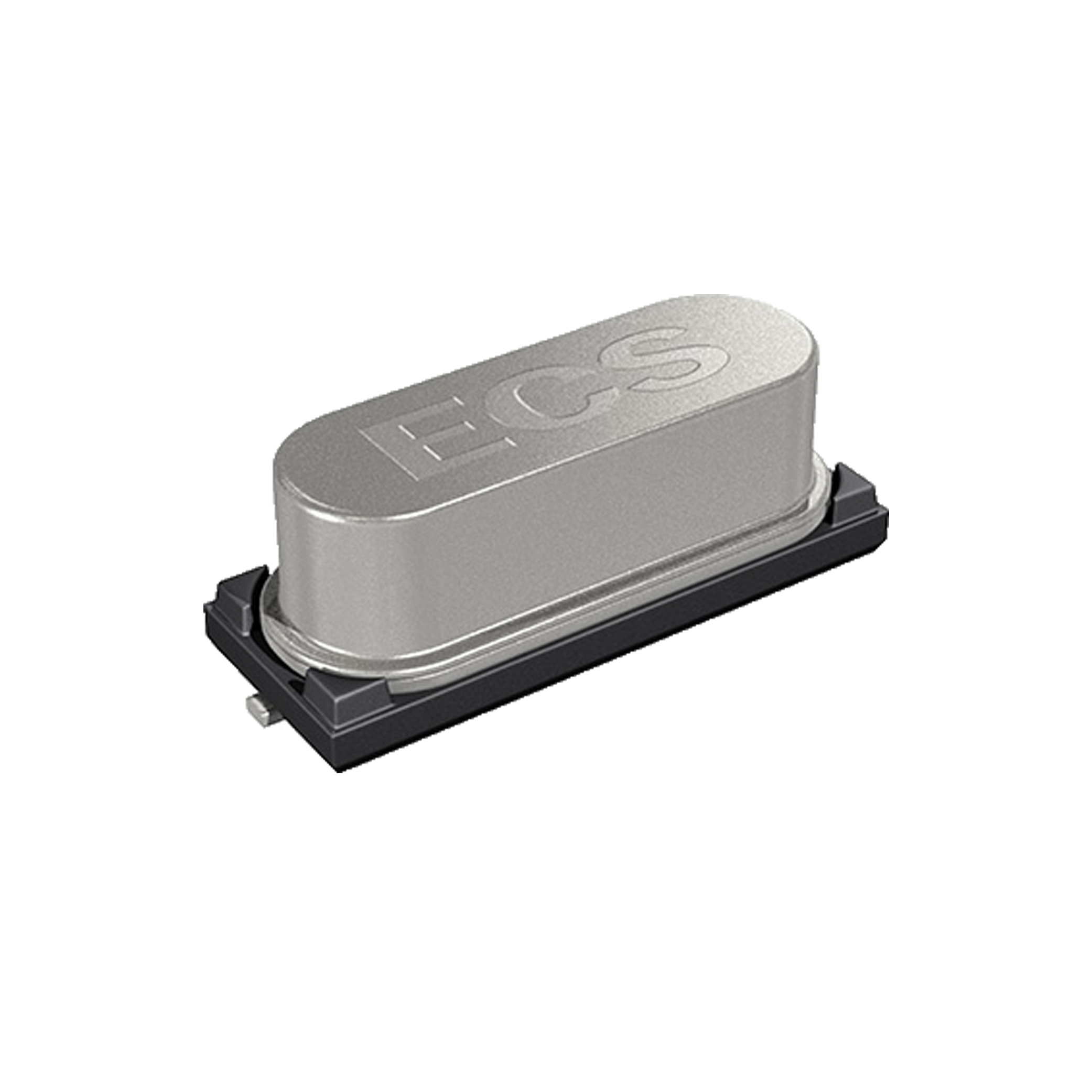

Product Images
