10MHz SMD crystal oscillator featuring 30ppm frequency tolerance and 100ppm frequency stability. Designed for surface mount applications, this component offers a 20pF load capacitance and a low ESR of 80 Ohms. Operating across a wide temperature range from -55°C to 125°C, it is lead-free and RoHS compliant.
Frequency10MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-100-20-30B-DU technical specifications.
General
Package/Case
SMD/SMT
ESR (Equivalent Series Resistance)
80R
Frequency
10MHz
Frequency Stability
100ppm
Frequency Tolerance
30ppm
Lead Free
Lead Free
Load Capacitance
20pF
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Packaging
Cut Tape
RoHS Compliant
Yes
Series
ECX-53B-DU
Compliance
RoHS
Compliant
Datasheet
ECS ECS-100-20-30B-DU Datasheet
Download the complete datasheet for ECS ECS-100-20-30B-DU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

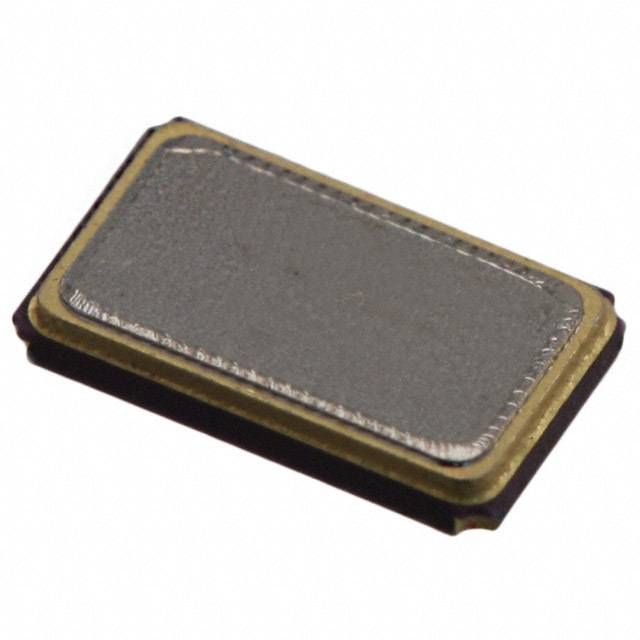

Product Images
