Technical Specifications
ECS ECS-100-20-5PVX technical specifications.
General
ESR (Equivalent Series Resistance)
60R
Frequency
10MHz
Frequency Stability
50ppm
Frequency Tolerance
30ppm
Height
0.102inch
Length
0.449inch
Load Capacitance
20pF
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
Series
CSM-7SSX
Width
0.185inch
Compliance
RoHS
Compliant
Datasheet
ECS ECS-100-20-5PVX Datasheet
Download the complete datasheet for ECS ECS-100-20-5PVX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

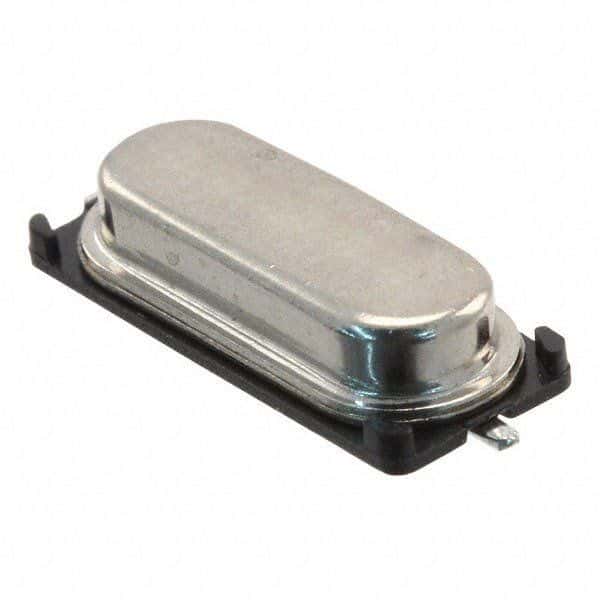

Product Images
