This 12MHz crystal has a frequency stability of 50ppm and a frequency tolerance of 30ppm. It is available in a 2-pin SMD package and is lead-free. The crystal operates within a temperature range of -10°C to 70°C. It is RoHS compliant and packaged in tape and reel with 1000 units per package.
Frequency12MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-120-18-5PX-TR technical specifications.
General
| ESR (Equivalent Series Resistance) | 50R |
| Frequency | 12MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 0.169inch |
| Lead Free | Lead Free |
| Length | 0.449inch |
| Load Capacitance | 18pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CSM-7X |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 4.8mm |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-120-18-5PX-TR Datasheet
Download the complete datasheet for ECS ECS-120-18-5PX-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

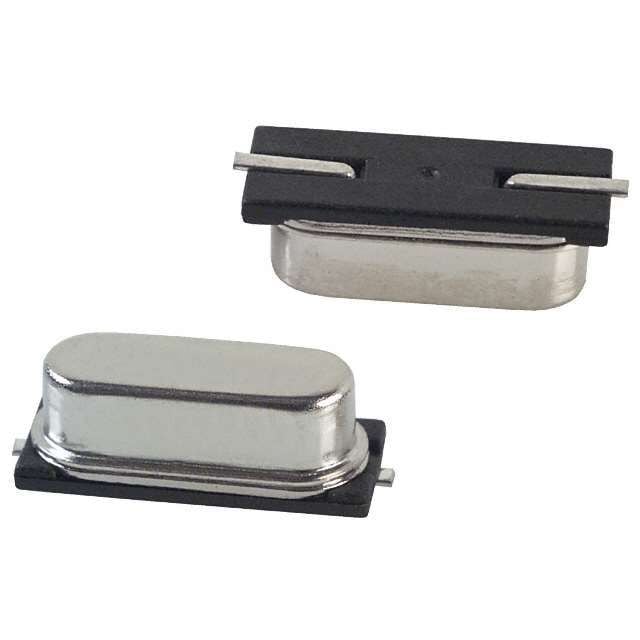

Product Images
