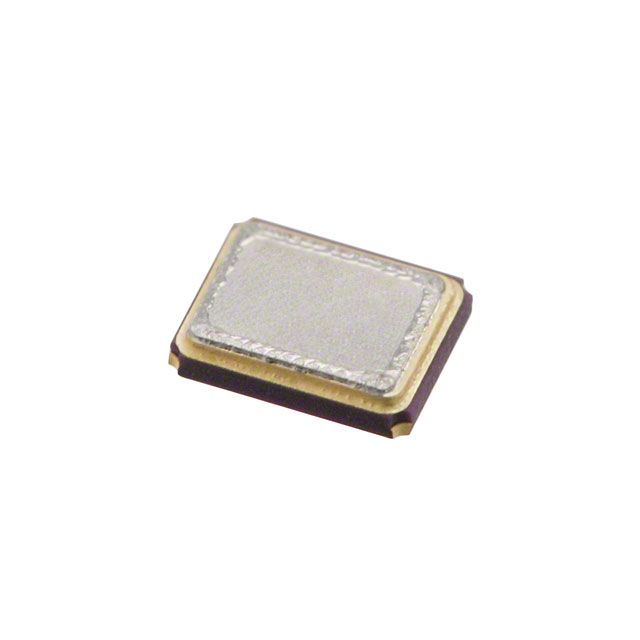

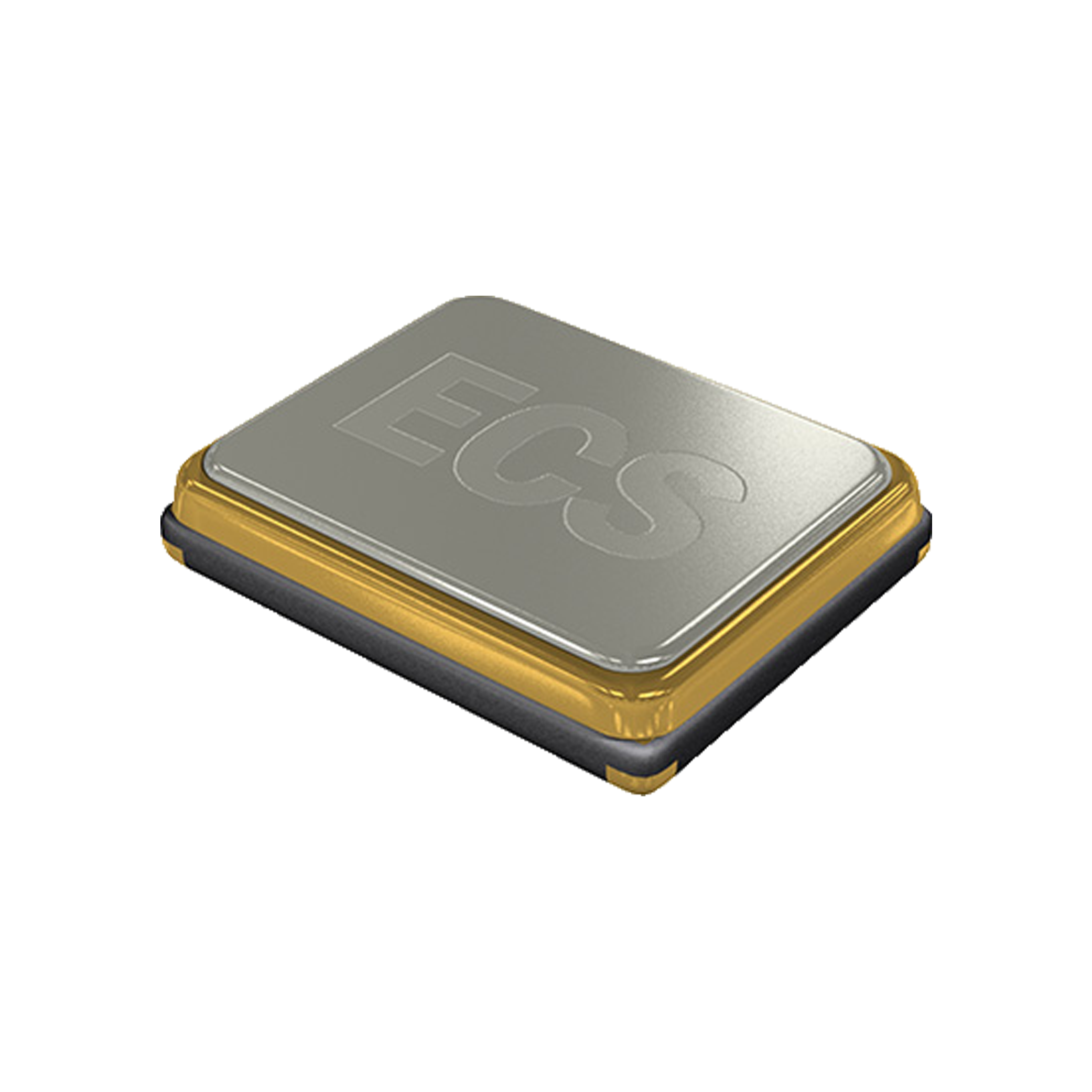

Surface mount crystal oscillator operating at 12MHz. Features a frequency tolerance of ±50ppm and frequency stability of ±50ppm. Designed with a 20pF load capacitance and 100 Ohm equivalent series resistance. Encased in a compact SMD/SMT package, this lead-free and RoHS compliant component is suitable for applications requiring precise frequency control.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the ECS ECS-120-20-33-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 100R |
| Frequency | 12MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 50ppm |
| Lead Free | Lead Free |
| Load Capacitance | 20pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | ECX-32 |
| RoHS | Compliant |
