The ECS ECS-160-20-3X-TR is a 16MHz crystal with a frequency stability of 50ppm and a frequency tolerance of 30ppm. It has a maximum operating temperature of 70°C and a minimum operating temperature of -10°C. The crystal is lead free and RoHS compliant, packaged in a tape and reel with 3000 units per reel. It is a surface mount device with a resistance welded package type.
Frequency16MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-160-20-3X-TR technical specifications.
General
| ESR (Equivalent Series Resistance) | 50R |
| Frequency | 16MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 2.3mm |
| Lead Free | Lead Free |
| Length | 7.6mm |
| Load Capacitance | 20pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CSM-3X |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 4.1mm |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-160-20-3X-TR Datasheet
Download the complete datasheet for ECS ECS-160-20-3X-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

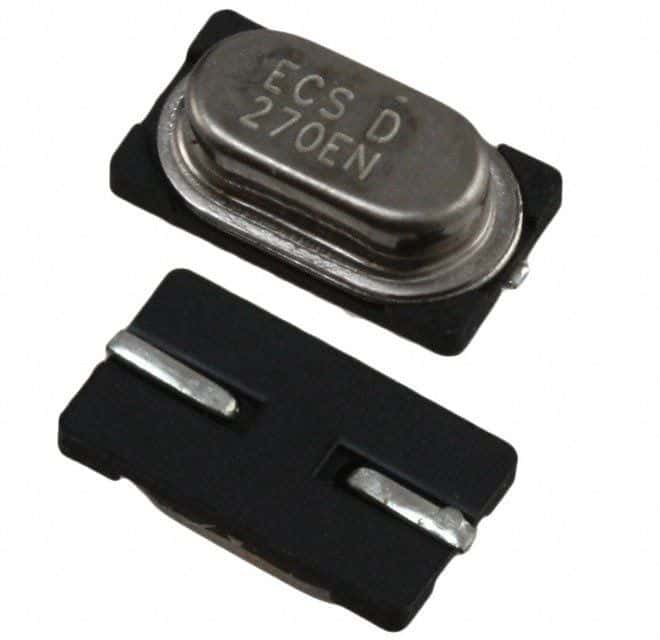

Product Images
