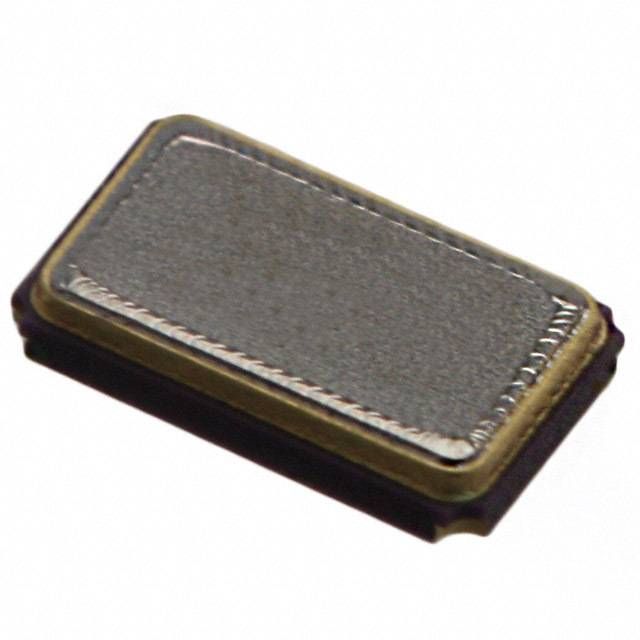

16MHz SMD crystal oscillator with 10ppm frequency tolerance and stability. Features a 9pF load capacitance and 60 Ohm ESR, housed in a compact 4mm x 2.5mm x 0.8mm SMD/SMT package. Operates across a -20°C to 70°C temperature range. This lead-free, RoHS compliant component is supplied on tape and reel for efficient surface mounting.
Frequency16MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-160-9-42-CKM-TR technical specifications.
General
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 60R |
| Frequency | 16MHz |
| Frequency Stability | 10ppm |
| Frequency Tolerance | 10ppm |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 4mm |
| Load Capacitance | 9pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ECX-42 |
| Termination | SMD/SMT |
| Tolerance | 10ppm |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-160-9-42-CKM-TR Datasheet
Download the complete datasheet for ECS ECS-160-9-42-CKM-TR to view detailed technical specifications.
