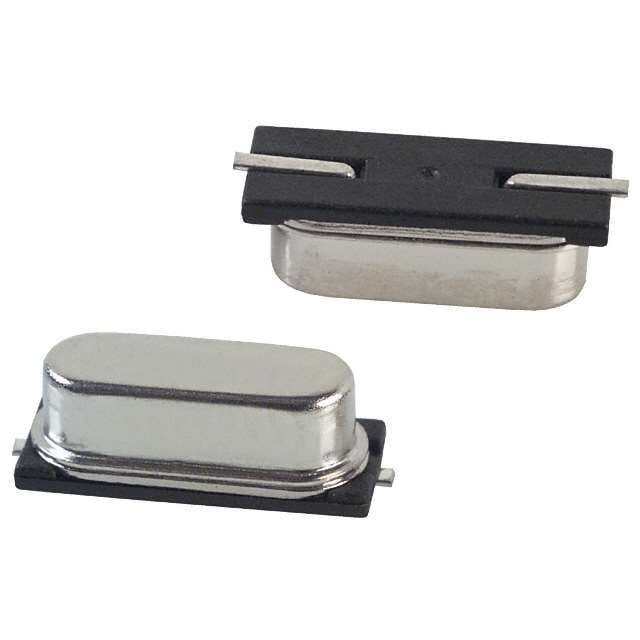

ECS-200-16-5P-TR

Name: ECS-200-16-5P-TR ECS
Brand: ECS
SKU: ECS-200-16-5P-TR

CRYSTAL 20.0000MHZ 16PF SMD

Frequency20MHz

MountingSurface Mount

Quick Jump:

ECS ECS-200-16-5P-TR technical specifications.

ESR (Equivalent Series Resistance)	30R
Frequency	20MHz
Frequency Stability	50ppm
Frequency Tolerance	30ppm
Height	0.169inch
Lead Free	Contains Lead
Length	0.449inch
Load Capacitance	16pF
Max Operating Temperature	70°C
Min Operating Temperature	-10°C
Mount	Surface Mount
Package Quantity	1
Packaging	Cut Tape
Series	CSM-7
Width	0.189inch

RoHS	Not Compliant
