20MHz SMD crystal oscillator featuring 30ppm frequency tolerance and 50ppm frequency stability. Designed for surface mount applications with a 20pF load capacitance and 50 Ohm ESR. Operates within a -10°C to 70°C temperature range, housed in a 7.6mm x 4.1mm x 2.3mm package. This lead-free, RoHS compliant component is supplied on tape and reel.
Frequency20MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-200-20-3X-TR technical specifications.
General
| ESR (Equivalent Series Resistance) | 50R |
| Frequency | 20MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 2.3mm |
| Lead Free | Lead Free |
| Length | 7.6mm |
| Load Capacitance | 20pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CSM-3X |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 4.1mm |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-200-20-3X-TR Datasheet
Download the complete datasheet for ECS ECS-200-20-3X-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

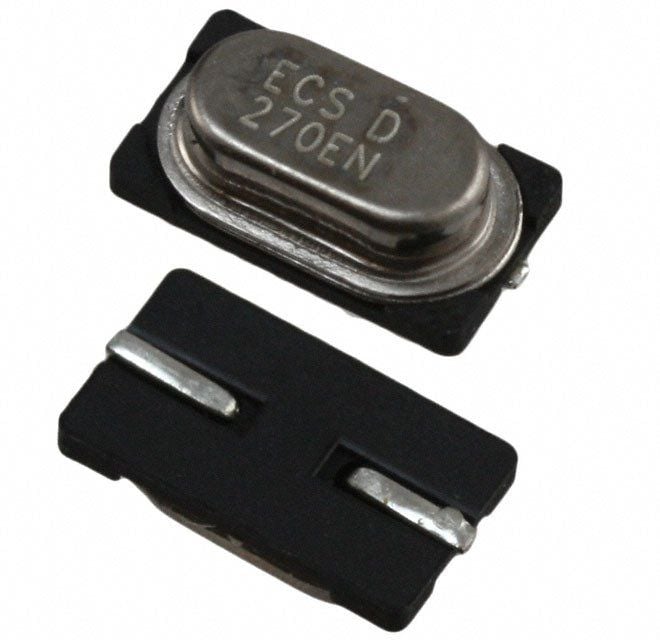

Product Images
