24MHz SMD crystal oscillator featuring 30ppm frequency tolerance and 100ppm frequency stability. Surface mount crystal with 20pF load capacitance and 30 Ohm ESR. Operates across a -55°C to 125°C temperature range. Lead-free and RoHS compliant, packaged in cut tape.
Frequency24MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-240-20-30B-DU technical specifications.
General
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 30R |
| Frequency | 24MHz |
| Frequency Stability | 100ppm |
| Frequency Tolerance | 30ppm |
| Lead Free | Lead Free |
| Load Capacitance | 20pF |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | ECX-53B-DU |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-240-20-30B-DU Datasheet
Download the complete datasheet for ECS ECS-240-20-30B-DU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

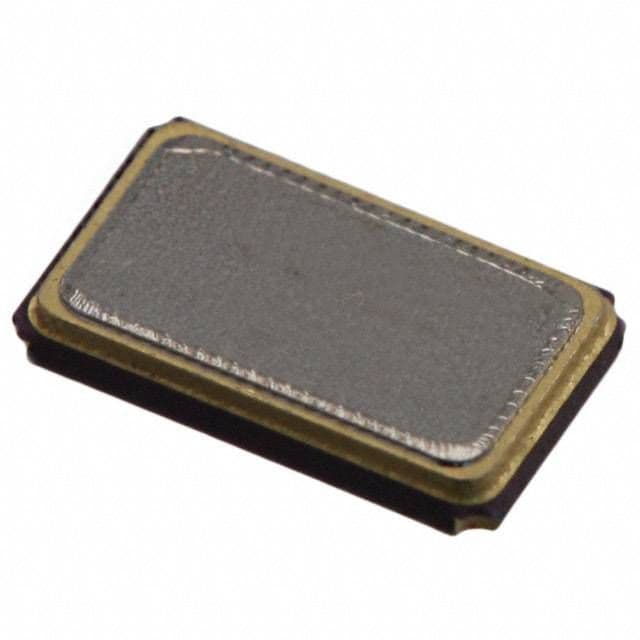

Product Images
