25MHz quartz crystal oscillator, SMD/SMT package, 18pF load capacitance, 30ppm frequency tolerance, and 50ppm frequency stability. Features 30 Ohms ESR, operating temperature range of -40°C to 85°C, and lead-free termination. Packaged on tape and reel for surface mounting. RoHS compliant.
Frequency25MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-250-18-23A-EN-TR technical specifications.
General
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 30R |
| Frequency | 25MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Lead Free | Lead Free |
| Load Capacitance | 18pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ECX-64A |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-250-18-23A-EN-TR Datasheet
Download the complete datasheet for ECS ECS-250-18-23A-EN-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

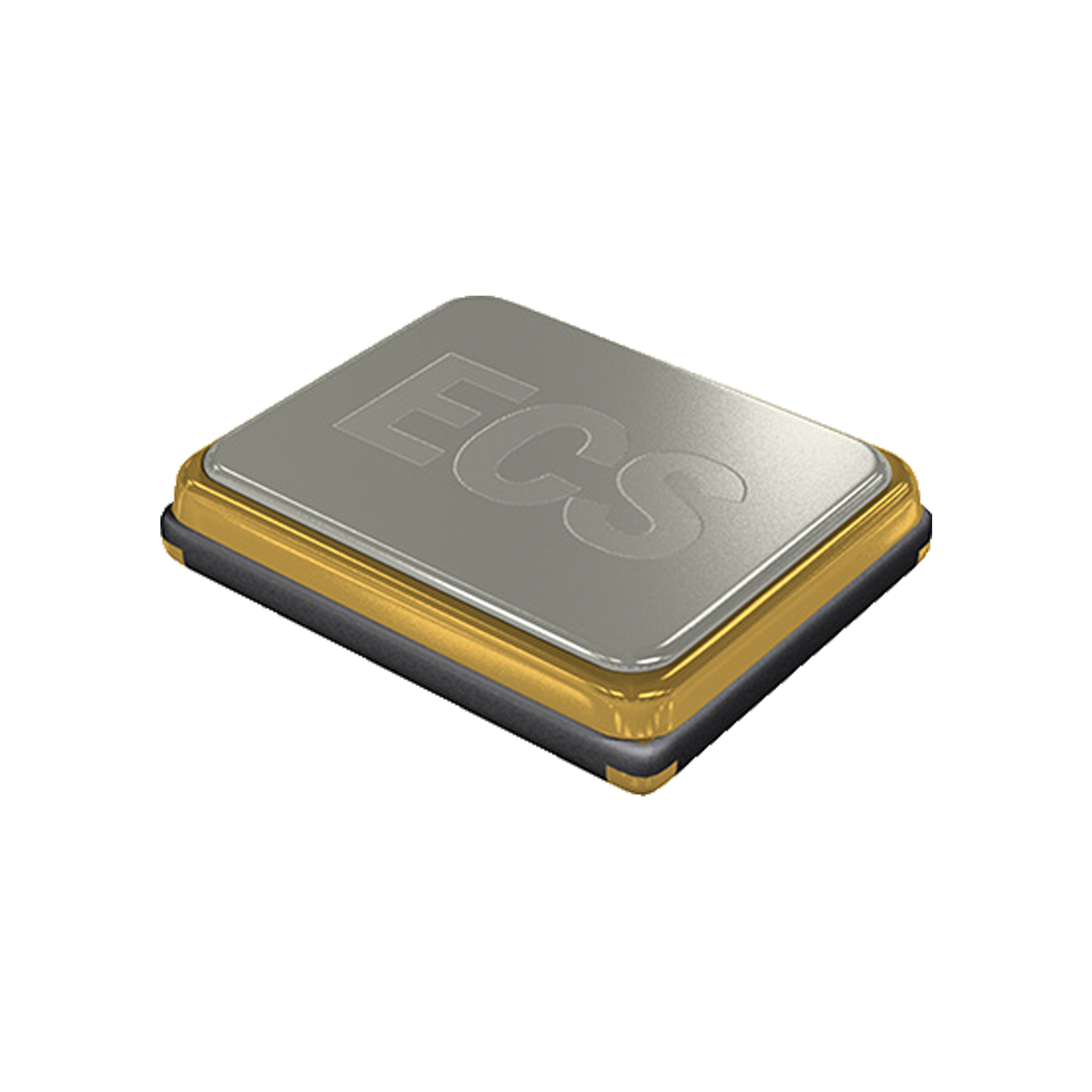

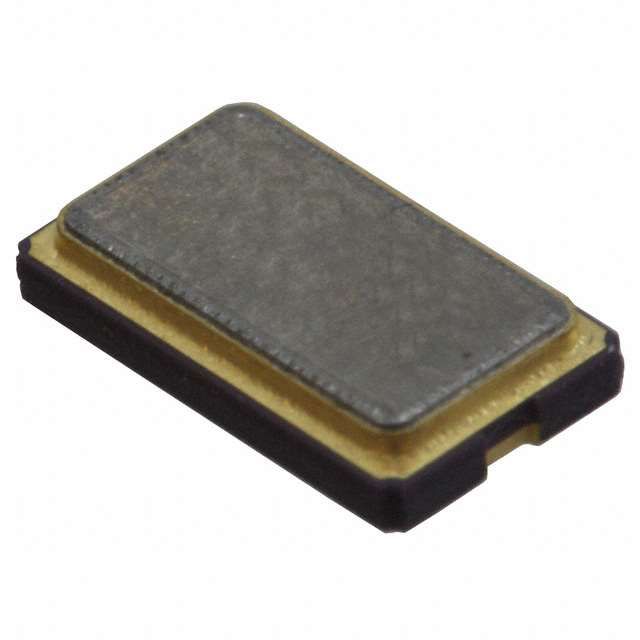

Product Images
