25MHz fundamental quartz crystal, SMD/SMT package, 3.2mm length, 2.5mm width, 0.8mm height. Features 20pF load capacitance, 40R ESR, and ±10ppm frequency tolerance and stability. Operates from -20°C to 70°C, is lead-free and RoHS compliant. Supplied on tape and reel, 1000 units per package.
Frequency25MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-250-20-33-CKM-TR technical specifications.
General
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 40R |
| Frequency | 25MHz |
| Frequency Stability | 10ppm |
| Frequency Tolerance | 10ppm |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Load Capacitance | 20pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ECX-32 |
| Termination | SMD/SMT |
| Tolerance | 10ppm |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-250-20-33-CKM-TR Datasheet
Download the complete datasheet for ECS ECS-250-20-33-CKM-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

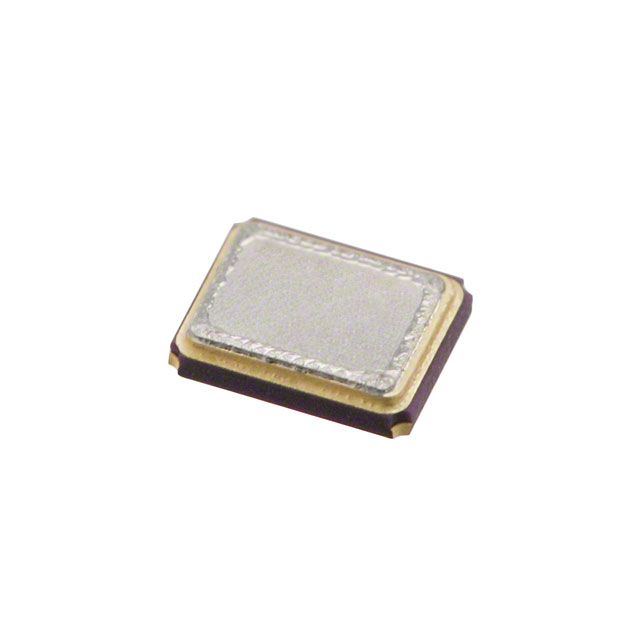

Product Images
