ECS-270-20-33-TR

Name: ECS-270-20-33-TR ECS
Brand: ECS
SKU: ECS-270-20-33-TR

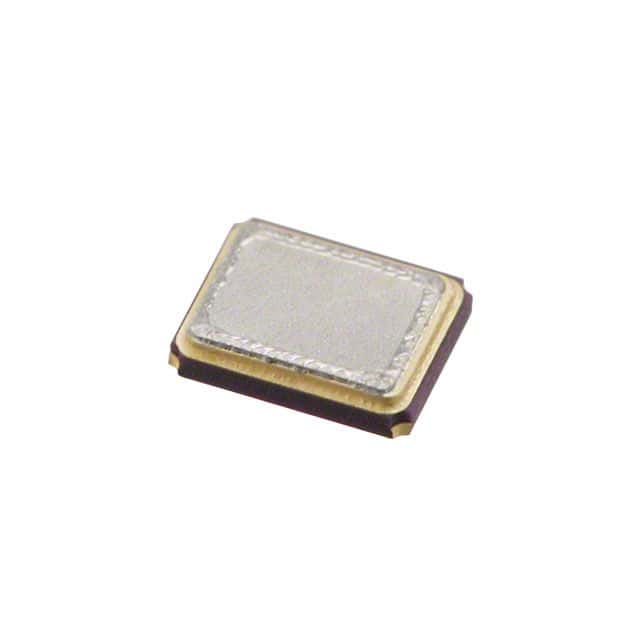

CRYSTAL 27.0000MHZ 20PF SMD

Frequency27MHz

PackageSMD/SMT

MountingSurface Mount

Quick Jump:

ECS ECS-270-20-33-TR technical specifications.

Package/Case	SMD/SMT
ESR (Equivalent Series Resistance)	40R
Frequency	27MHz
Frequency Stability	50ppm
Frequency Tolerance	50ppm
Height	0.028inch
Lead Free	Lead Free
Length	0.126inch
Load Capacitance	20pF
Max Operating Temperature	70°C
Min Operating Temperature	-20°C
Mount	Surface Mount
Package Quantity	1
Packaging	Tape and Reel
RoHS Compliant	Yes
Series	ECX-32
Termination	SMD/SMT
Width	2.5mm

RoHS

Compliant

This datasheet cannot be embedded due to technical restrictions.
