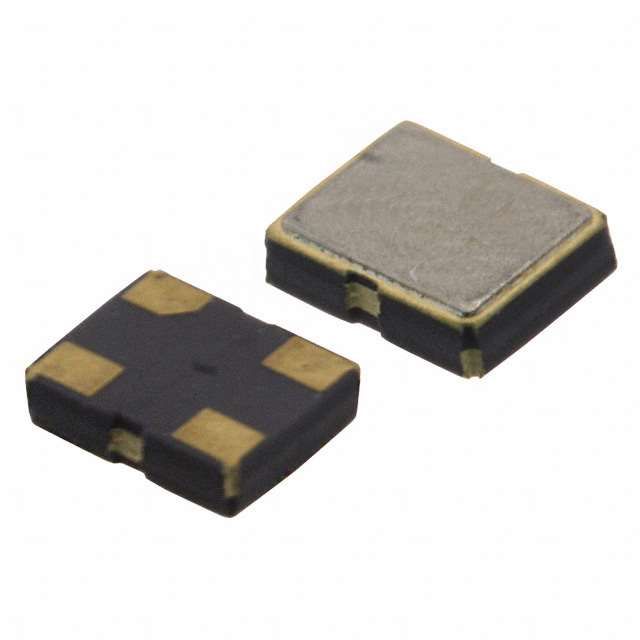

CMOS SMD oscillator operating at 32.768kHz. Features 30ppm frequency stability and 15pF load capacitance. Designed for surface mount applications with a 3.3V operating supply voltage. Offers low current consumption of 1.5uA maximum. Operates across a temperature range of -40°C to 85°C. Packaged in tape and reel, this lead-free and RoHS compliant component is ideal for timing applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the ECS ECS-327KE-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
ECS ECS-327KE-TR technical specifications.
| Package/Case | SMD/SMT |
| Frequency | 32.768kHz |
| Frequency Stability | 30ppm |
| Lead Free | Lead Free |
| Load Capacitance | 15pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 1.5uA |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ECS-327KE |
| Termination | SMD/SMT |
| RoHS | Compliant |
Download the complete datasheet for ECS ECS-327KE-TR to view detailed technical specifications.
