100 MHz clock oscillator in a 3.2 x 5 x 1.3 mm SMD/SMT package. Features 1.8V operating supply voltage, ±50 ppm frequency stability, and 30pF load capacitance. Operates within a 0 to +70°C temperature range with a maximum supply current of 25mA. This surface mount component is lead-free, RoHS compliant, and supplied on tape and reel.
Frequency100MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-3518-1000-B-TR technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 100MHz |
| Frequency Stability | 50ppm |
| Lead Free | Lead Free |
| Load Capacitance | 30pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 25mA |
| Mount | Surface Mount |
| Operating Supply Voltage | 1.8V |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ECS-3518 |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-3518-1000-B-TR Datasheet
Download the complete datasheet for ECS ECS-3518-1000-B-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

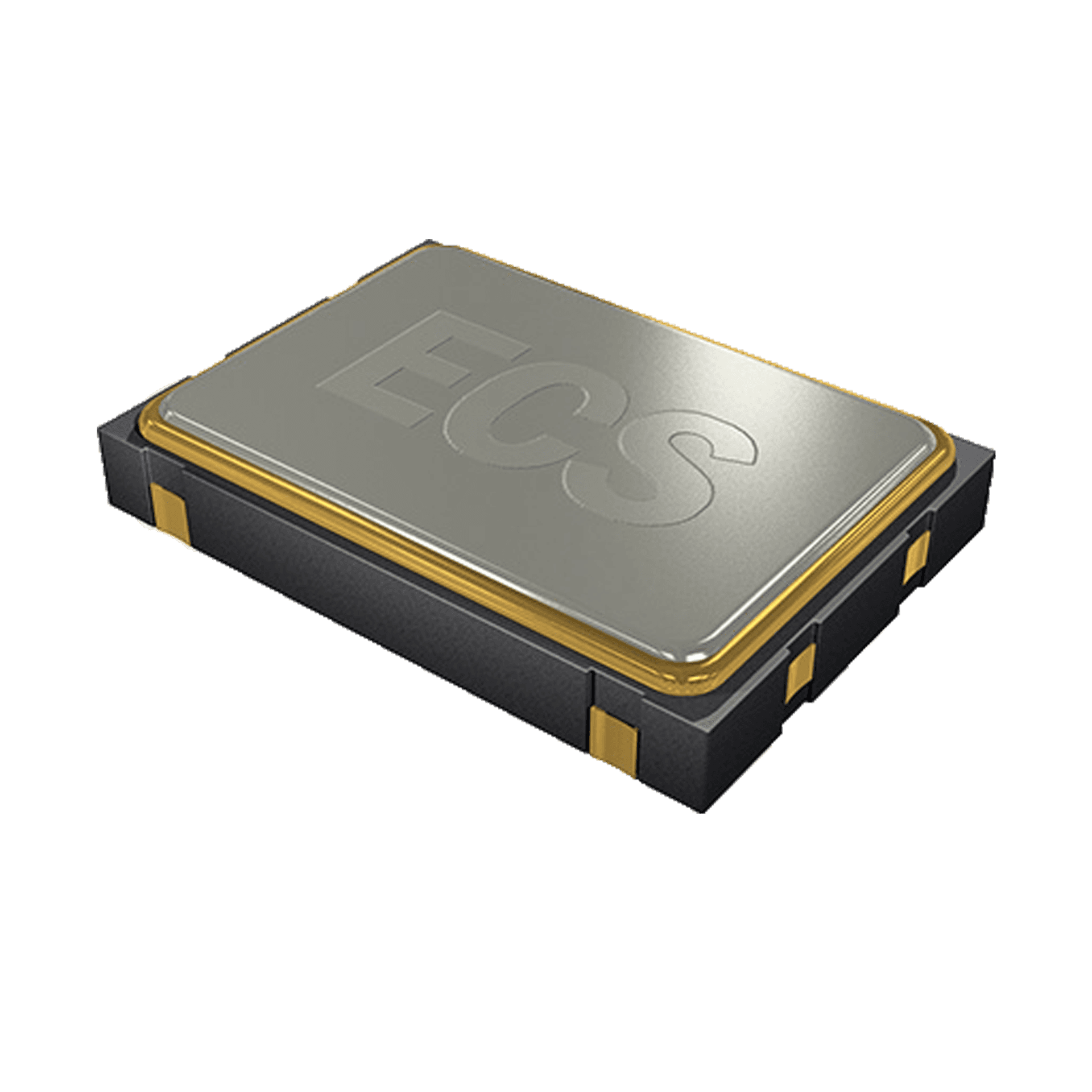

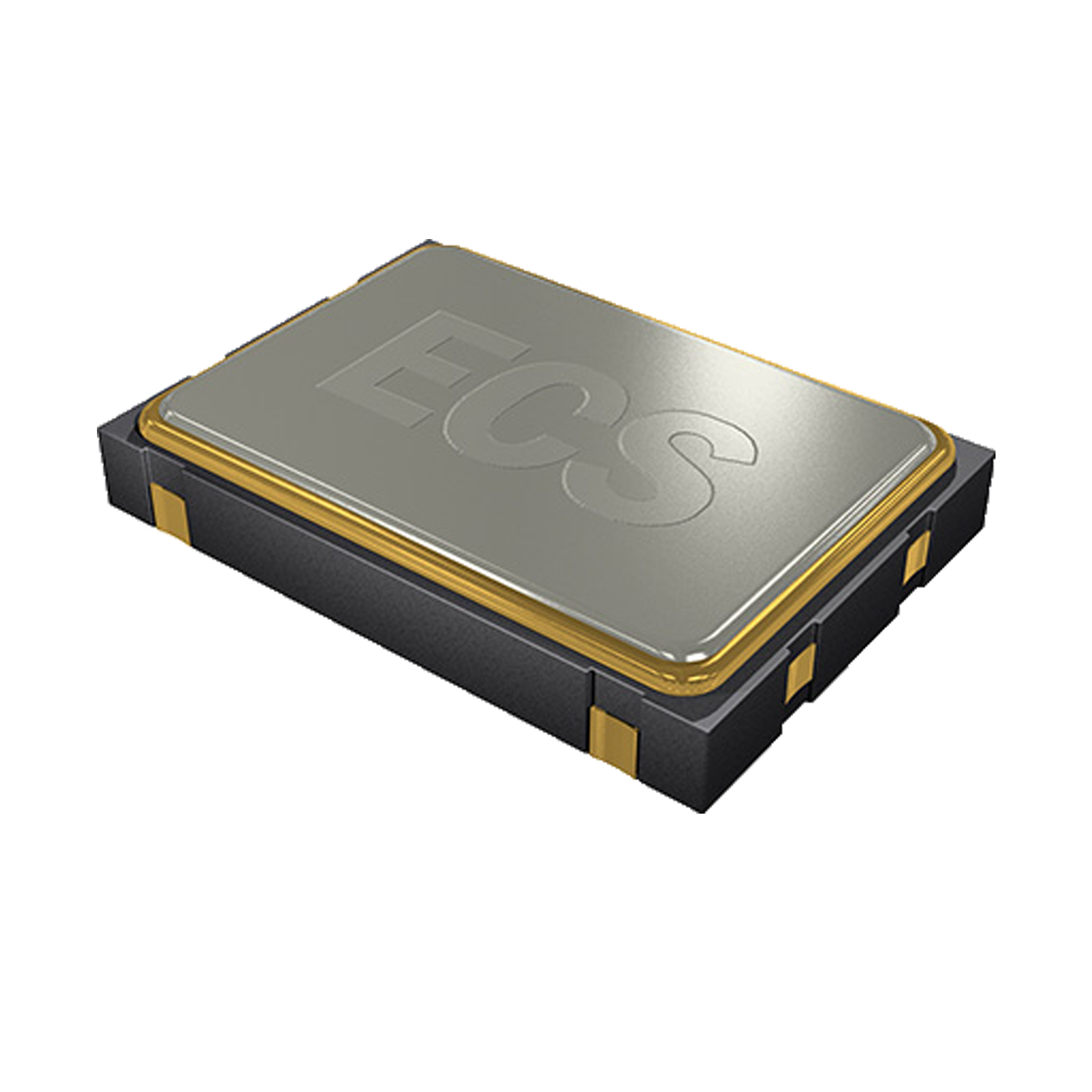

Product Images
