The ECS-3953M-080-BN-TR is an 8MHz SMD oscillator with a frequency stability of 50ppm. It operates within a supply voltage range of 2.97V to 3.63V and has a maximum supply current of 15mA. The oscillator is suitable for surface mount applications and is compliant with RoHS regulations. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C.
Frequency8MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-3953M-080-BN-TR technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 8MHz |
| Frequency Stability | 50ppm |
| Lead Free | Lead Free |
| Load Capacitance | 15pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 15mA |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 2.97V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ECS-3953M-BN |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-3953M-080-BN-TR Datasheet
Download the complete datasheet for ECS ECS-3953M-080-BN-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

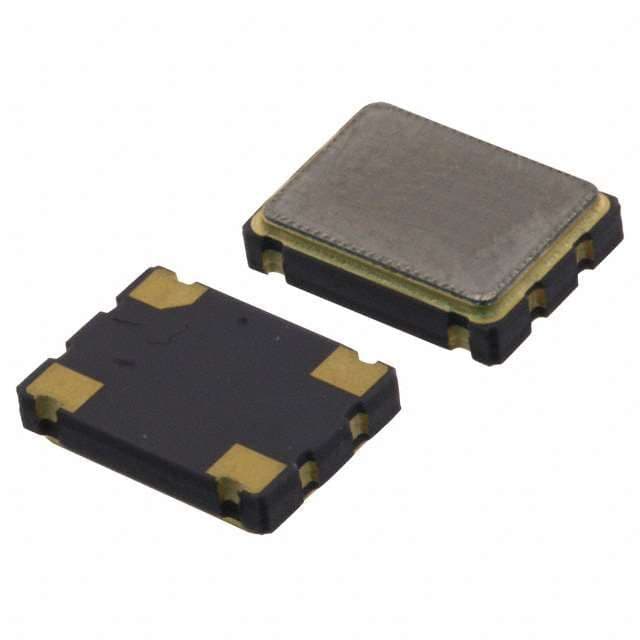

Product Images
