Surface mount crystal oscillator providing a 25MHz HCMOS output. Features 50ppm frequency stability and operates within a -10°C to 70°C temperature range. This miniature ceramic oscillator is designed for surface mounting and comes in a 4-pin SMD package. It is lead-free and RoHS compliant, with a maximum supply current of 15mA.
Frequency25MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-3953M-250-B-TR technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 25MHz |
| Frequency Stability | 50ppm |
| Height | 0.069inch |
| Lead Free | Lead Free |
| Length | 0.295inch |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Supply Current | 15mA |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | ECS-3953M |
| Width | 0.197inch |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-3953M-250-B-TR Datasheet
Download the complete datasheet for ECS ECS-3953M-250-B-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

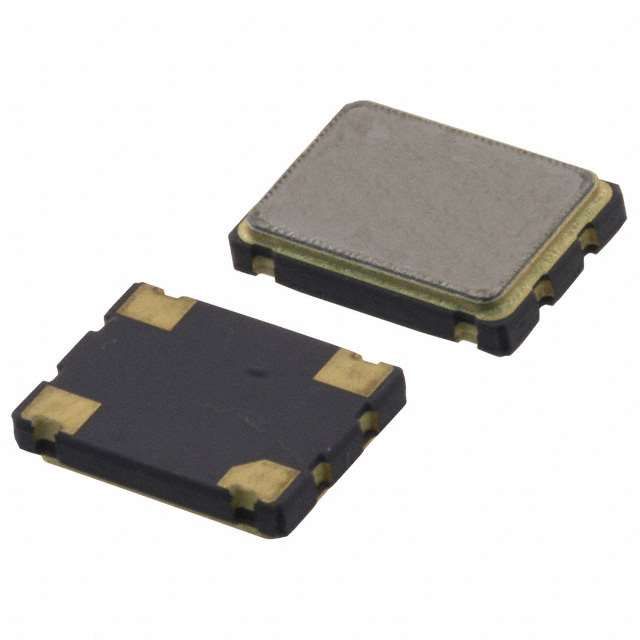

Product Images
