Surface mount oscillator with an 8MHz nominal frequency, offering a frequency range from 1.544MHz to 125MHz. Features 100ppm frequency stability and operates with a 5V supply voltage. Designed for surface mounting with SMD/SMT termination, this component is lead-free and RoHS compliant. It has a maximum operating temperature of 125°C and a minimum of -55°C, with a maximum supply current of 15mA. Packaged in tape and reel for efficient assembly.
Frequency8MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-3961-080-AU-TR technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 8MHz |
| Frequency Stability | 100ppm |
| Lead Free | Lead Free |
| Load Capacitance | 15pF |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Current | 15mA |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ECS-3961 |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-3961-080-AU-TR Datasheet
Download the complete datasheet for ECS ECS-3961-080-AU-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

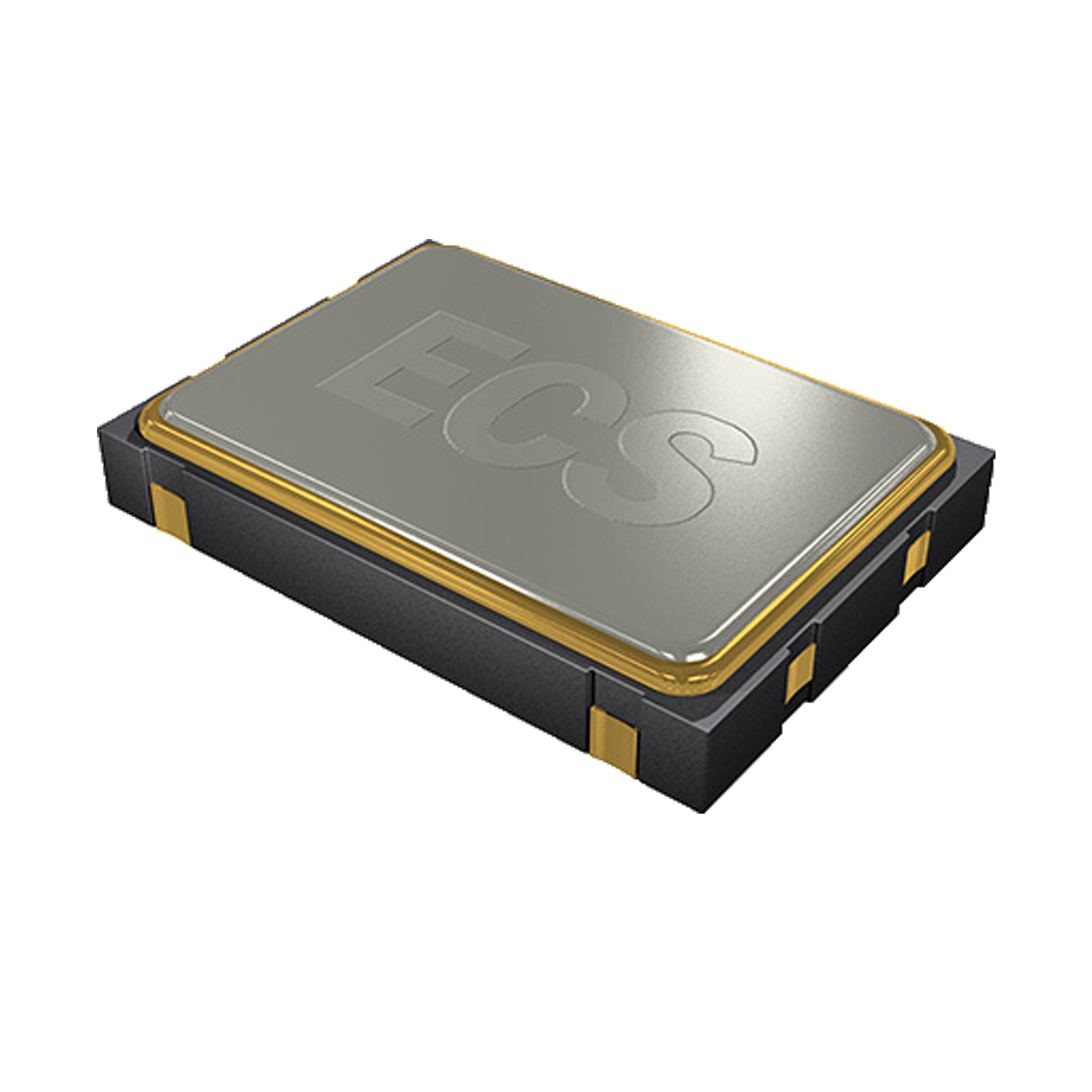

Product Images
