Surface mount crystal oscillator operating at 10MHz nominal frequency. Features a frequency stability of 100ppm, load capacitance of 15pF, and a wide operating temperature range from -55°C to 125°C. This component requires a 5V supply voltage and draws a maximum of 20mA. Packaged in a compact SMD/SMT case with dimensions of 0.197" L x 0.126" W x 0.051" H, it is supplied on tape and reel.
Frequency10MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-3961-100-AU-TR technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 10MHz |
| Frequency Stability | 100ppm |
| Height | 0.051inch |
| Length | 0.197inch |
| Load Capacitance | 15pF |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Current | 20mA |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Series | ECS-3961 |
| Termination | SMD/SMT |
| Width | 0.126inch |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-3961-100-AU-TR Datasheet
Download the complete datasheet for ECS ECS-3961-100-AU-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

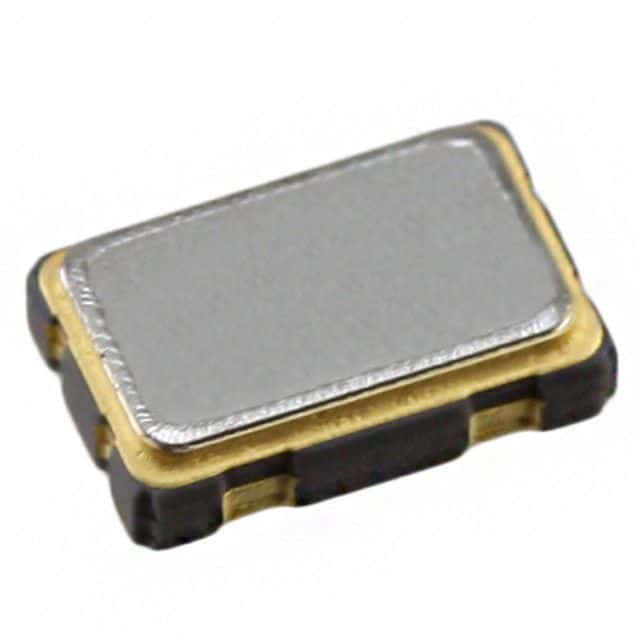

Product Images
