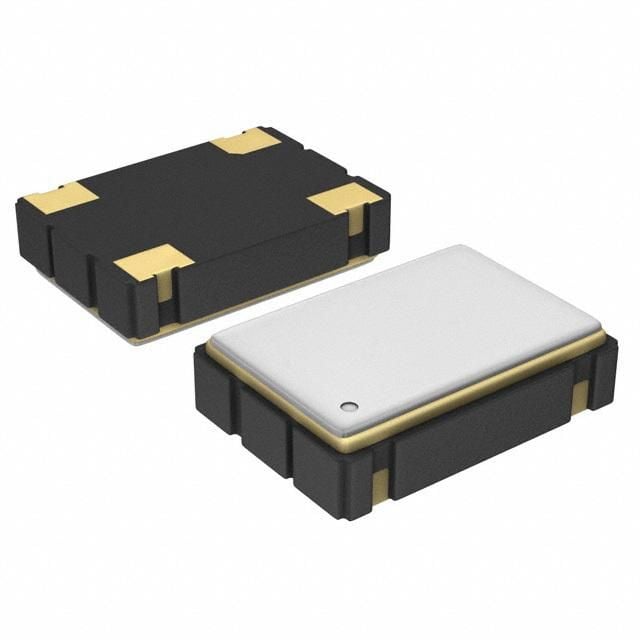

25MHz HCMOS crystal oscillator in an SMD/SMT package. Features a frequency stability of 100ppm, load capacitance of 30pF, and operates at 3.3V supply voltage with a maximum supply current of 10mA. Designed for surface mounting, this oscillator offers a wide operating temperature range from -55°C to 125°C. Its compact dimensions include a height of 0.051 inches, length of 0.197 inches, and width of 0.126 inches, supplied on tape and reel. RoHS compliant for environmental considerations.
Frequency25MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-3963-250-AU-TR technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 25MHz |
| Frequency Stability | 100ppm |
| Height | 0.051inch |
| Length | 0.197inch |
| Load Capacitance | 30pF |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Current | 10mA |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ECS-3963 |
| Termination | SMD/SMT |
| Width | 0.126inch |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-3963-250-AU-TR Datasheet
Download the complete datasheet for ECS ECS-3963-250-AU-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
