SMD/SMT quartz crystal operating at 4MHz with a frequency tolerance of 30ppm and stability of 100ppm. Features a 20pF load capacitance and 150 Ohm ESR. Encased in an SMD/SMT package with dimensions of 11.8mm (L) x 5.5mm (W) x 2.5mm (H). Operates within a temperature range of -10°C to 85°C. RoHS compliant and supplied on tape and reel.
Frequency4MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-40-20-18-TR technical specifications.
General
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 150R |
| Frequency | 4MHz |
| Frequency Stability | 100ppm |
| Frequency Tolerance | 30ppm |
| Height | 2.5mm |
| Lead Free | Lead Free |
| Length | 11.8mm |
| Load Capacitance | 20pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CSM-12 |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 5.5mm |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-40-20-18-TR Datasheet
Download the complete datasheet for ECS ECS-40-20-18-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

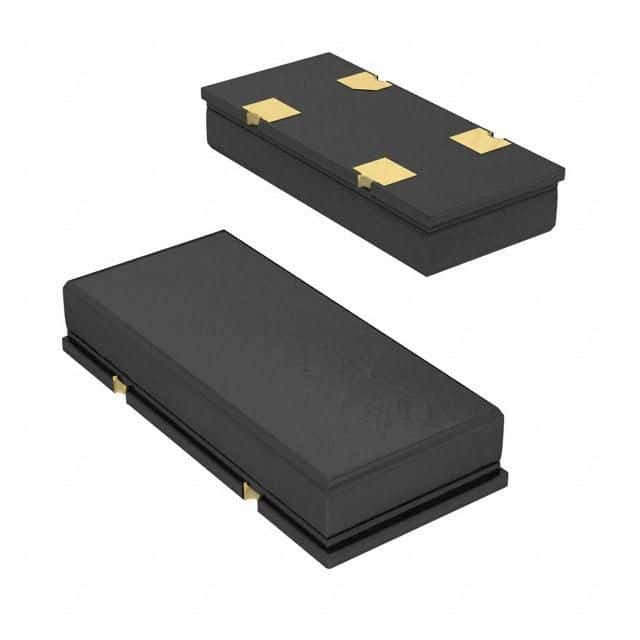

Product Images
