Surface mount quartz crystal operating at 4MHz with a frequency tolerance of 30ppm and frequency stability of 100ppm. Features a load capacitance of 20pF and an Equivalent Series Resistance (ESR) of 150 Ohms. This RoHS compliant component is lead-free, housed in a 13.2mm x 4.8mm x 4.3mm package, and operates within a temperature range of -40°C to 85°C. Supplied on tape and reel in quantities of 1000.
Frequency4MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-40-20-5PXDN-TR technical specifications.
General
| ESR (Equivalent Series Resistance) | 150R |
| Frequency | 4MHz |
| Frequency Stability | 100ppm |
| Frequency Tolerance | 30ppm |
| Height | 4.3mm |
| Lead Free | Lead Free |
| Length | 13.2mm |
| Load Capacitance | 20pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CSM-7X-DN |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 4.8mm |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-40-20-5PXDN-TR Datasheet
Download the complete datasheet for ECS ECS-40-20-5PXDN-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

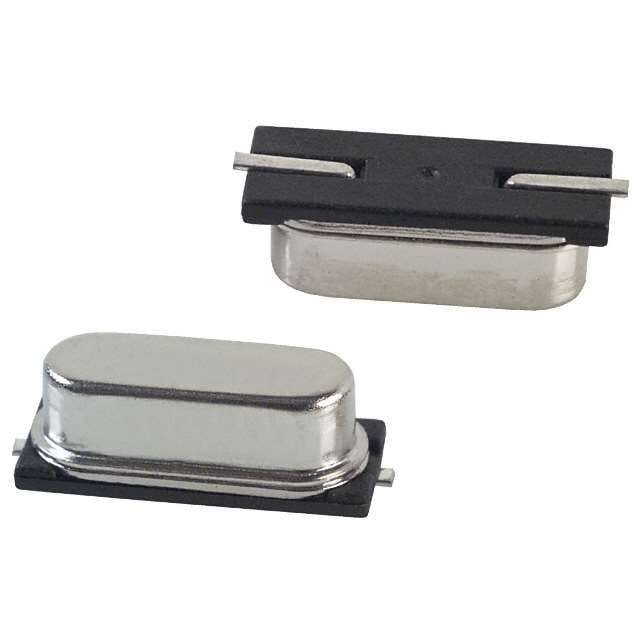

Product Images
