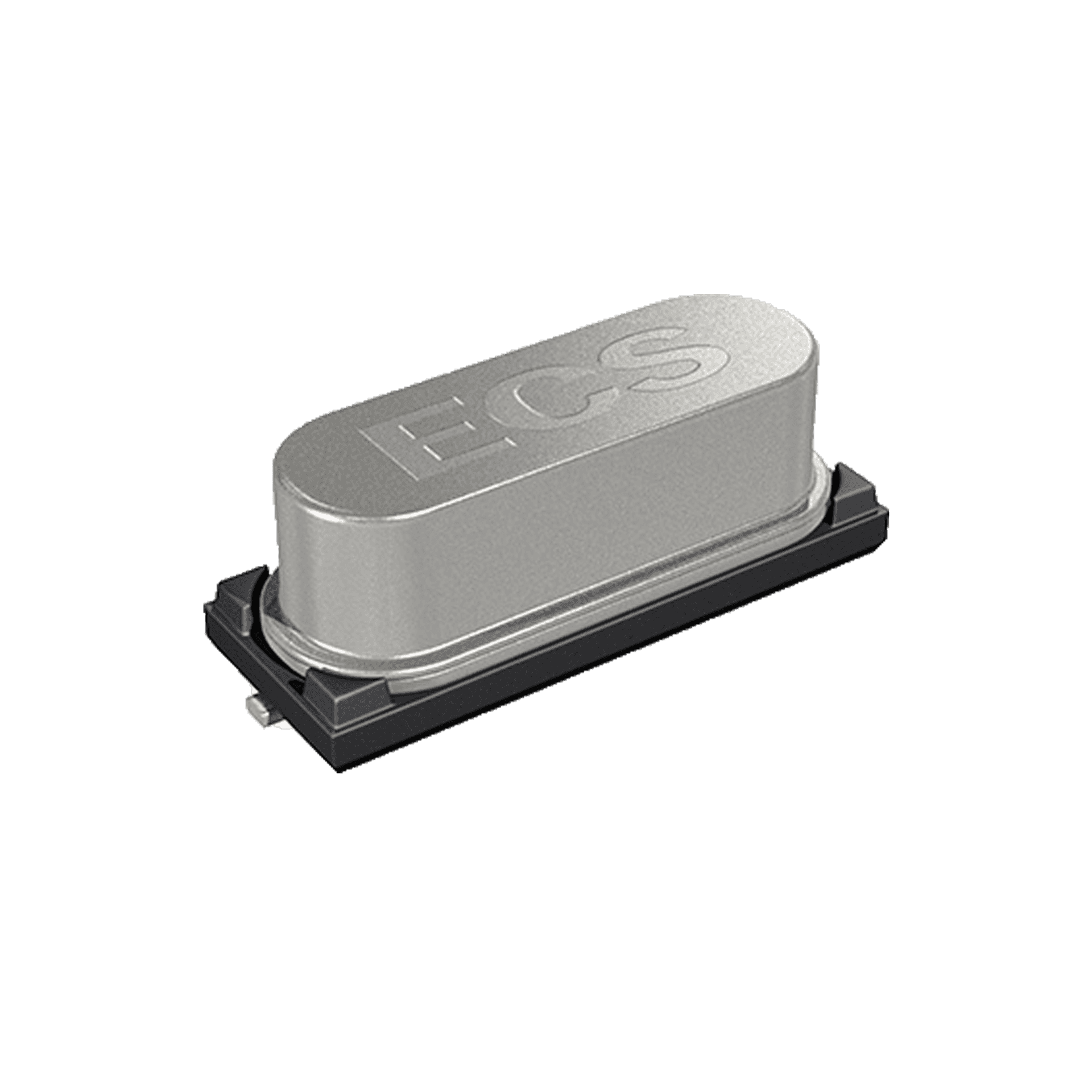

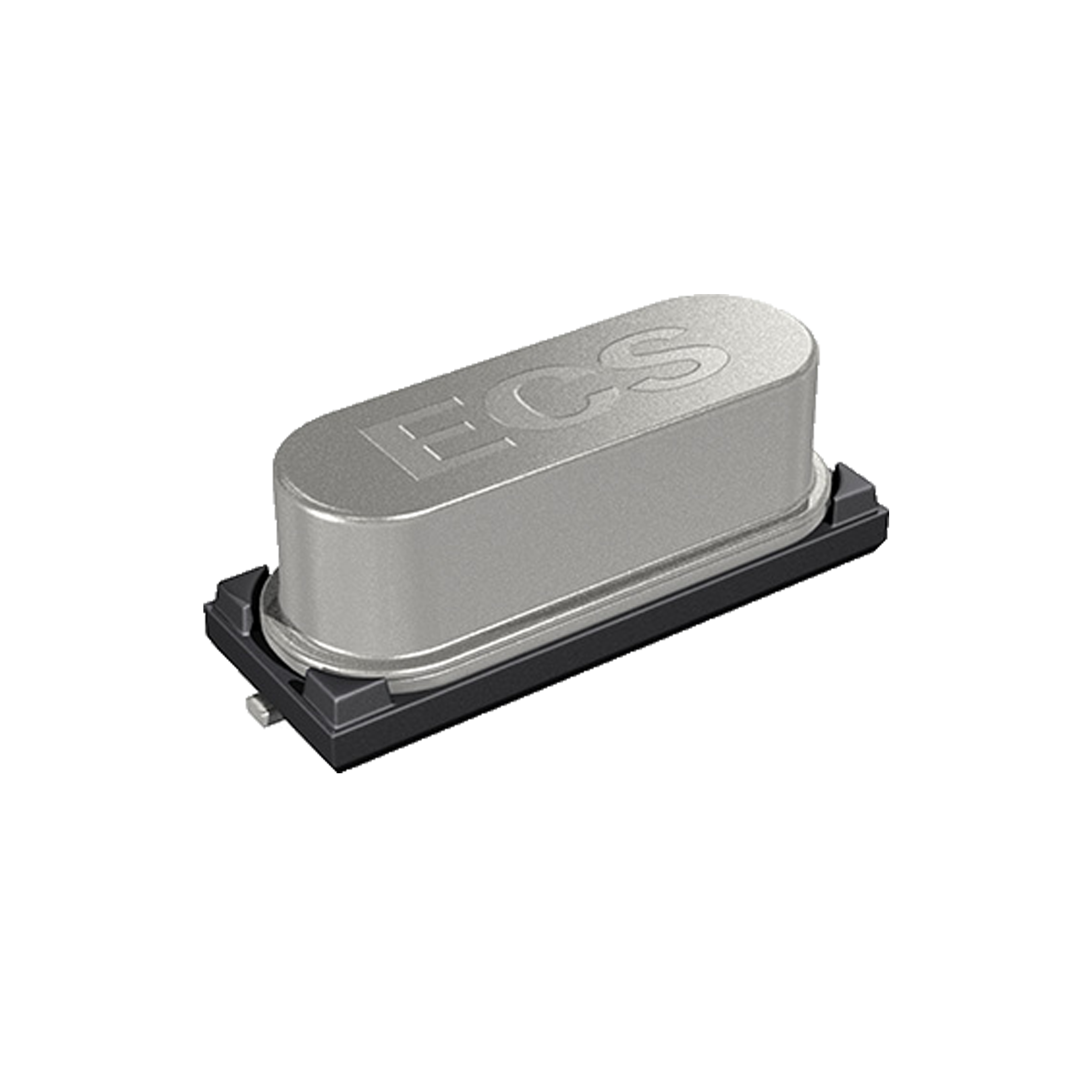

4MHz SMD crystal oscillator featuring 30ppm frequency tolerance and 100ppm frequency stability. Designed for surface mount applications, this component offers a 20pF load capacitance and a low ESR of 150 Ohms. Operating across a wide temperature range of -55°C to 125°C, it measures 11.35mm in length, 4.8mm in width, and 4.3mm in height. This lead-free component is supplied in tape and reel packaging.
Sign in to ask questions about the ECS ECS-40-20-5PXDU-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
ECS ECS-40-20-5PXDU-TR technical specifications.
| ESR (Equivalent Series Resistance) | 150R |
| Frequency | 4MHz |
| Frequency Stability | 100ppm |
| Frequency Tolerance | 30ppm |
| Height | 4.3mm |
| Lead Free | Lead Free |
| Length | 11.35mm |
| Load Capacitance | 20pF |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Series | CSM-7X-DU |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 4.8mm |
| RoHS | Compliant |
