ECS-41-18-18-TR

Name: ECS-41-18-18-TR ECS
Brand: ECS
SKU: ECS-41-18-18-TR

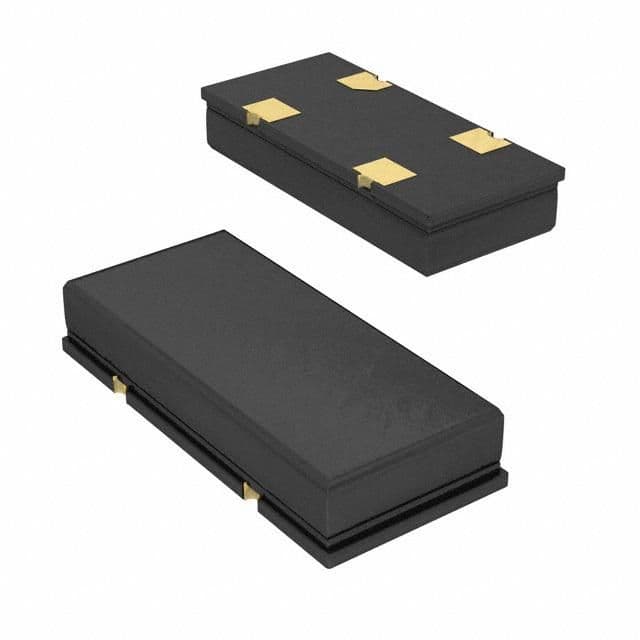

CRYSTAL 4.0960MHZ 18PF SMD

Frequency4.096MHz

PackageSMD/SMT

MountingSurface Mount

Quick Jump:

ECS ECS-41-18-18-TR technical specifications.

Package/Case	SMD/SMT
ESR (Equivalent Series Resistance)	150R
Frequency	4.096MHz
Frequency Stability	100ppm
Frequency Tolerance	30ppm
Height	0.098inch
Length	0.465inch
Load Capacitance	18pF
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Package Quantity	1
Packaging	Tape and Reel
Series	CSM-12
Termination	SMD/SMT
Tolerance	30ppm
Width	5.5mm

RoHS

Compliant
