Technical Specifications
ECS ECS-73-18-10X technical specifications.
General
| Package/Case | Radial |
| ESR (Equivalent Series Resistance) | 100R |
| Frequency | 7.3728MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 50ppm |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Load Capacitance | 18pF |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Series | ECS-3X10X |
| Termination | Radial |
| Tolerance | 50ppm |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-73-18-10X Datasheet
Download the complete datasheet for ECS ECS-73-18-10X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

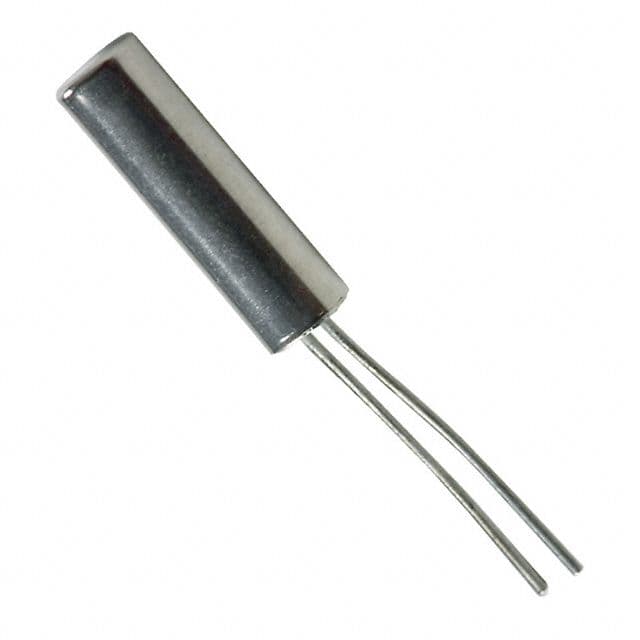

Product Images
