This 7.3728MHz crystal features a frequency stability of 50ppm and a frequency tolerance of 30ppm. It operates within a temperature range of -10°C to 70°C and is available in a surface mount package. The crystal is lead free and RoHS compliant, making it suitable for a variety of applications.
Frequency7.3728MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-73-20-5PX-TR technical specifications.
General
| ESR (Equivalent Series Resistance) | 60R |
| Frequency | 7.3728MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 0.169inch |
| Lead Free | Lead Free |
| Length | 0.449inch |
| Load Capacitance | 20pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CSM-7X |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 4.8mm |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-73-20-5PX-TR Datasheet
Download the complete datasheet for ECS ECS-73-20-5PX-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

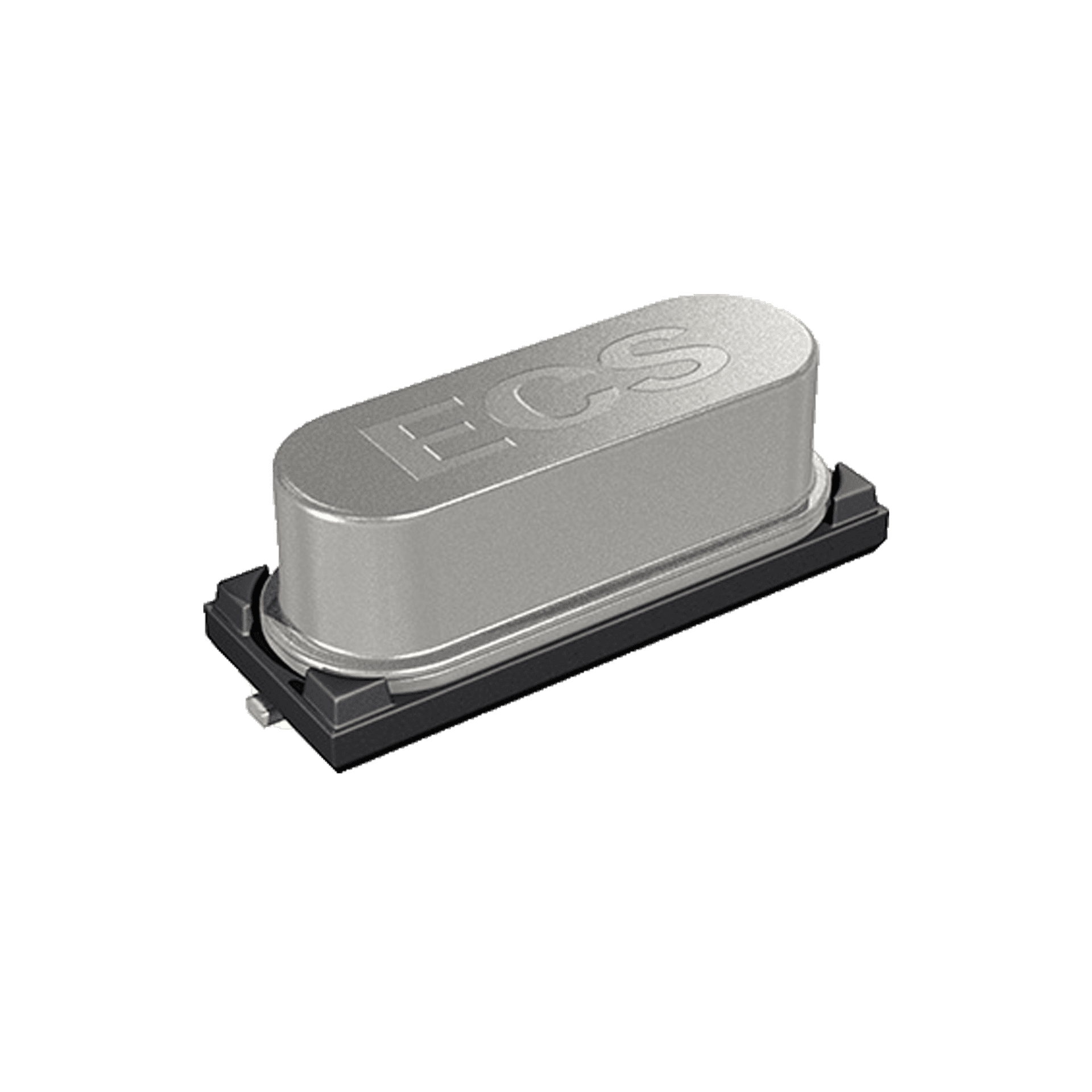

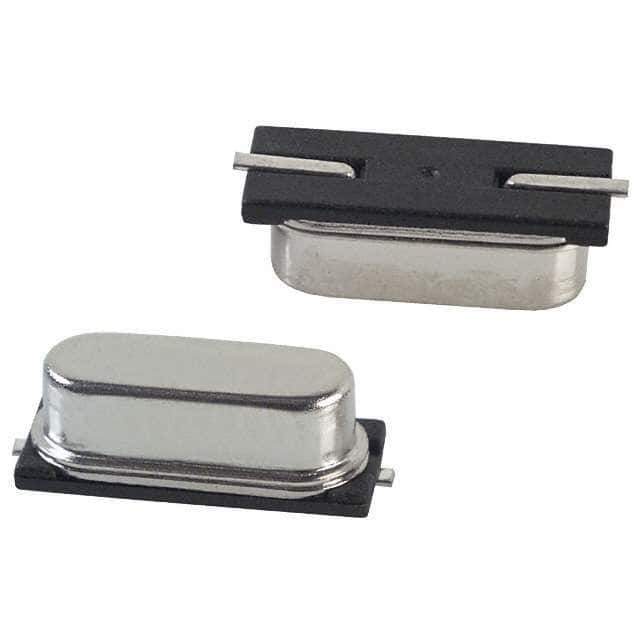

Product Images
