8MHz SMD crystal oscillator featuring 16pF load capacitance and 30ppm frequency tolerance. Offers 50ppm frequency stability across an operating temperature range of -10°C to 70°C, with a low ESR of 100 Ohms. This lead-free, RoHS compliant component is supplied in a 12.5mm x 12.5mm x 3.7mm package, available on tape and reel for surface mount applications.
Frequency8MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-80-16-7SX-TR technical specifications.
General
| ESR (Equivalent Series Resistance) | 100R |
| Frequency | 8MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 3.7mm |
| Lead Free | Lead Free |
| Length | 12.5mm |
| Load Capacitance | 16pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ECX-3SX |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 12.5mm |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-80-16-7SX-TR Datasheet
Download the complete datasheet for ECS ECS-80-16-7SX-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

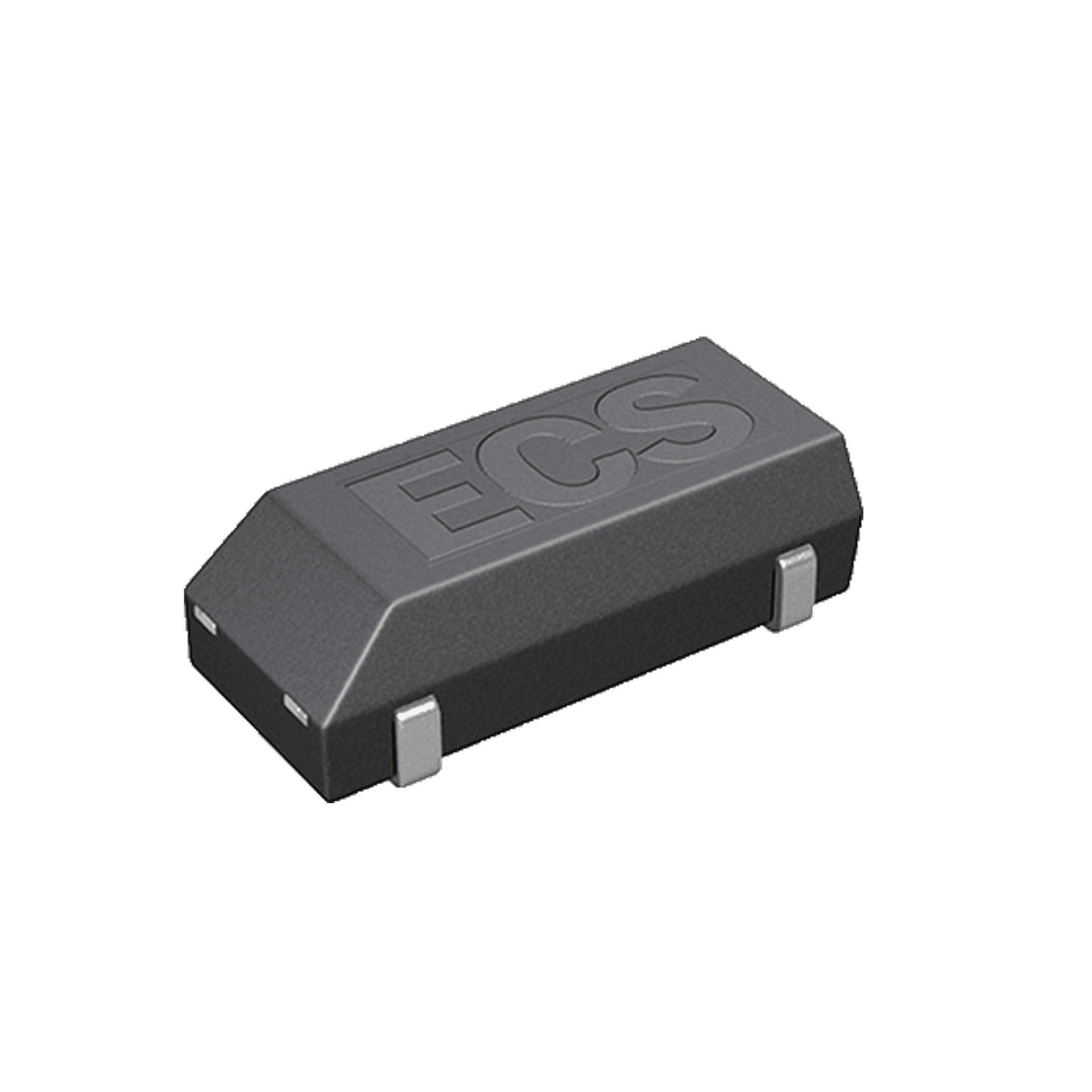

Product Images
