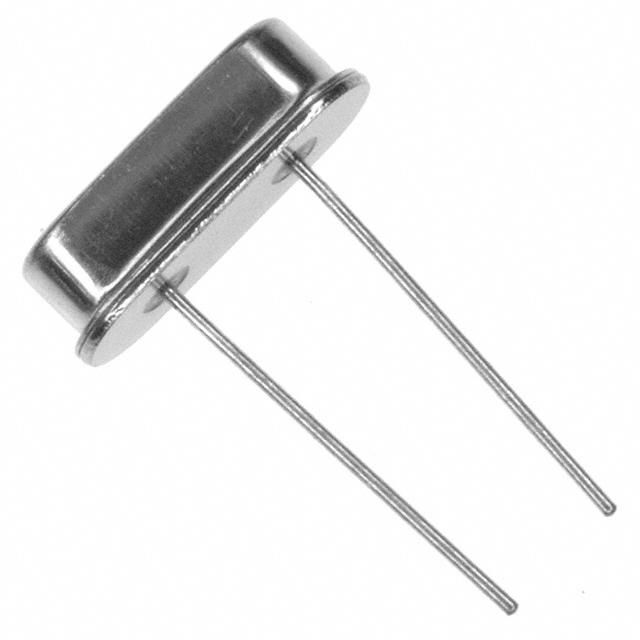

The ECS ECS-80-18-4X is a crystal with a frequency of 8MHz, frequency stability of 50ppm, and frequency tolerance of 30ppm. It has a load capacitance of 18pF and is designed for through-hole mounting. The crystal operates within a temperature range of -10°C to 70°C and is compliant with RoHS regulations. It is packaged in bulk quantities of 200 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the ECS ECS-80-18-4X datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| ESR (Equivalent Series Resistance) | 80R |
| Frequency | 8MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 3.5mm |
| Lead Free | Lead Free |
| Length | 11.35mm |
| Load Capacitance | 18pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | HC-49USX |
| Termination | Radial |
| Tolerance | 30ppm |
| Width | 4.65mm |
| RoHS | Compliant |
