This is a surface mount crystal with a frequency of 8MHz and a tolerance of 30ppm. It operates within a temperature range of -10°C to 125°C. The crystal has a low load capacitance of 20pF and is suitable for use in high-frequency applications. It is packaged in a 2-pin HC-49US package and is compliant with RoHS regulations.
Frequency8MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-80-20-5G3XDS-TR technical specifications.
General
| ESR (Equivalent Series Resistance) | 60R |
| Frequency | 8MHz |
| Frequency Stability | 100ppm |
| Frequency Tolerance | 30ppm |
| Height | 0.165inch |
| Length | 0.449inch |
| Load Capacitance | 20pF |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CSM-7X-3L |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 4.7mm |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-80-20-5G3XDS-TR Datasheet
Download the complete datasheet for ECS ECS-80-20-5G3XDS-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

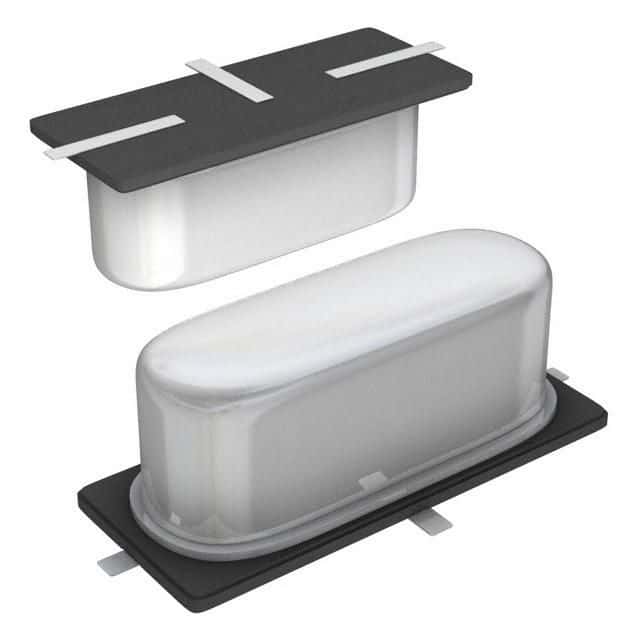

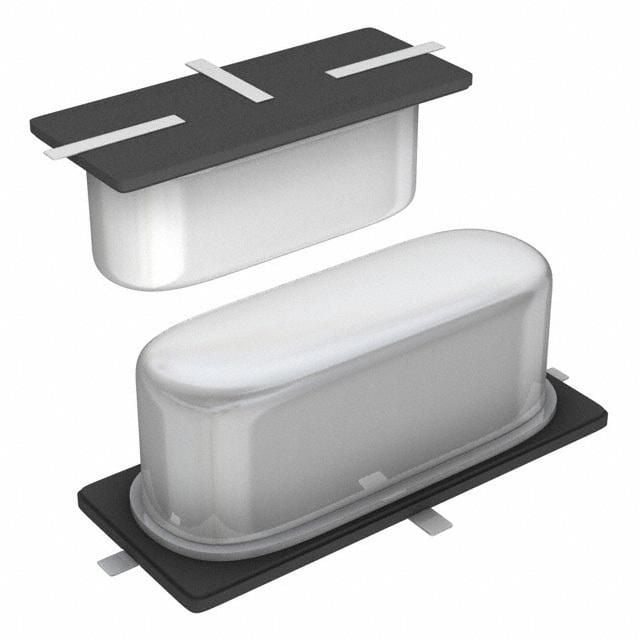

Product Images
