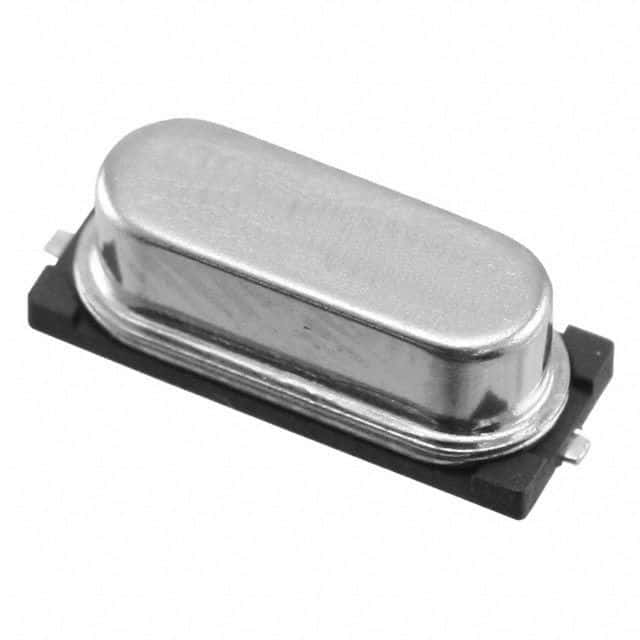

8MHz fundamental quartz crystal, SMD, 2-pin, featuring 30ppm frequency tolerance and 100ppm frequency stability. This crystal operates within a -55°C to 125°C temperature range, with an ESR of 60 Ohms and a load capacitance of 20pF. Measuring 11.35mm in length, 4.8mm in width, and 4.3mm in height, it is supplied on tape and reel in quantities of 1000. RoHS compliant and lead-free.
Sign in to ask questions about the ECS ECS-80-20-5PXDU-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
ECS ECS-80-20-5PXDU-TR technical specifications.
| ESR (Equivalent Series Resistance) | 60R |
| Frequency | 8MHz |
| Frequency Stability | 100ppm |
| Frequency Tolerance | 30ppm |
| Height | 4.3mm |
| Lead Free | Lead Free |
| Length | 11.35mm |
| Load Capacitance | 20pF |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CSM-7X-DU |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 4.8mm |
| RoHS | Compliant |
