Frequency50MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-8FA3X-500-TR technical specifications.
General
Frequency
50MHz
Frequency Stability
200ppm
Height
0.185inch
Length
0.551inch
Load Capacitance
30pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
20mA
Mount
Surface Mount
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
ECS-8FX
Termination
SMD/SMT
Width
0.341inch
Compliance
RoHS
Compliant
Datasheet
ECS ECS-8FA3X-500-TR Datasheet
Download the complete datasheet for ECS ECS-8FA3X-500-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

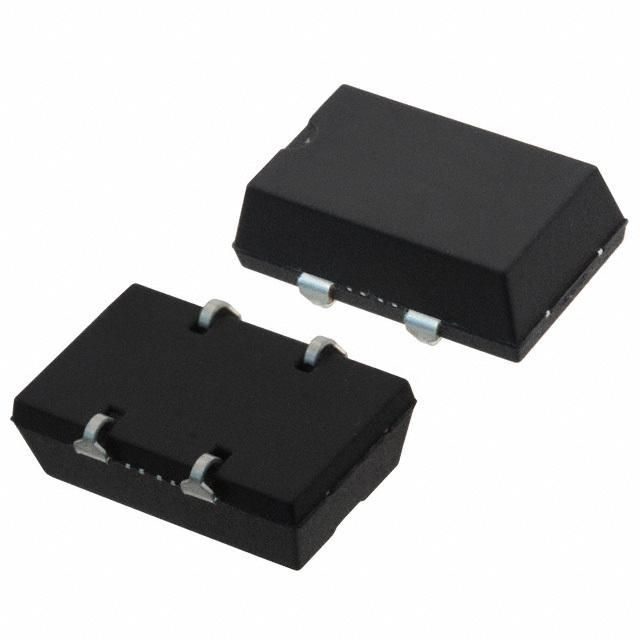

Product Images
