CMOS Surface Mount Oscillator operating at 2MHz with a load capacitance of 50pF. Features frequency stability of 200ppm and a wide operating temperature range from -40°C to 85°C. Maximum supply current is 23mA at a 5V operating supply voltage. Packaged in tape and reel, this lead-free and RoHS compliant component utilizes SMD/SMT termination.
Frequency2MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-8FMX-020-TR technical specifications.
General
| Frequency | 2MHz |
| Frequency Stability | 200ppm |
| Lead Free | Lead Free |
| Load Capacitance | 50pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 23mA |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ECS-8FX |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-8FMX-020-TR Datasheet
Download the complete datasheet for ECS ECS-8FMX-020-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

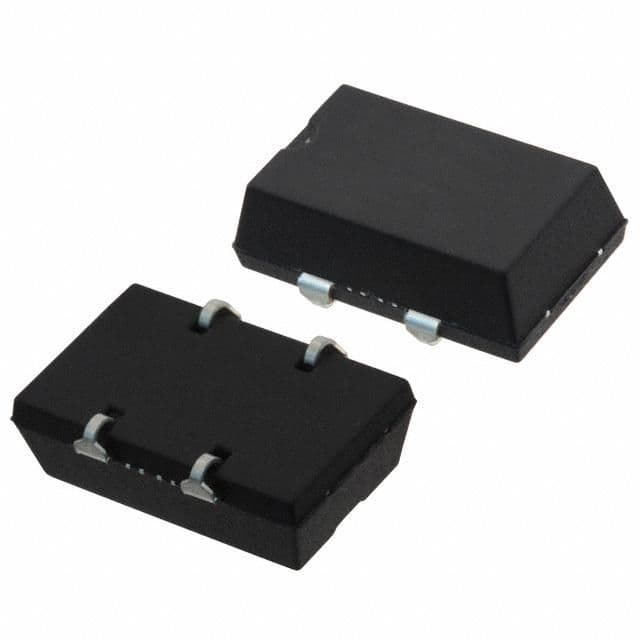

Product Images
