The ECS-SDR1-4339-TR is a RoHS compliant, ultra miniature SAW resonator with a frequency of 433.92MHz. It is designed for surface mount applications and operates over a temperature range of -40°C to 85°C. The device is packaged in an 8-pin SMD package and is lead free.
Frequency433.92MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-SDR1-4339-TR technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 433.92MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | ECS-SDR1 |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-SDR1-4339-TR Datasheet
Download the complete datasheet for ECS ECS-SDR1-4339-TR to view detailed technical specifications.
No datasheet is available for this part.

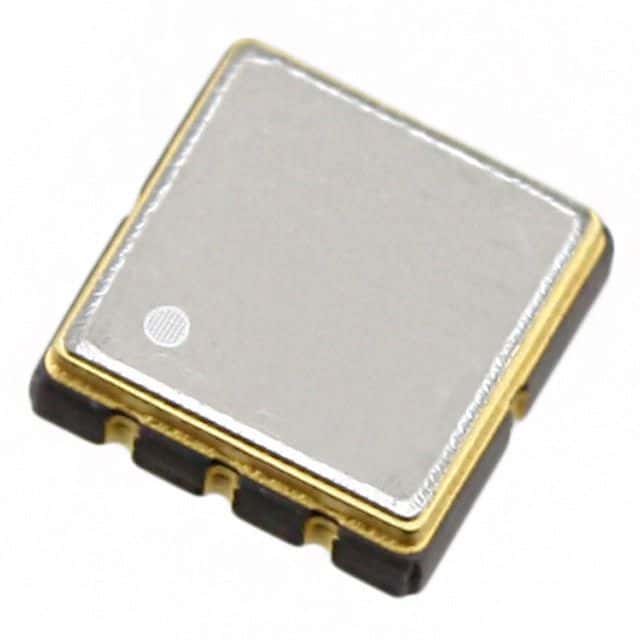

Product Images
