4MHz ceramic resonator with ±0.5% frequency tolerance and ±0.3% frequency stability. Features 30pF load capacitance and 40 Ohm impedance. Packaged in a 3-pin CSMD surface-mount case, supplied on tape and reel for automated assembly. Operates within a -20°C to 80°C temperature range and is lead-free and RoHS compliant.
Frequency4MHz
PackageSMD/SMT
Capacitance30pF
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-SR1-4.00-B-TR technical specifications.
General
Capacitance
30pF
Package/Case
SMD/SMT
Frequency
4MHz
Frequency Stability
0.3%
Frequency Tolerance
0.5%
Lead Free
Lead Free
Load Capacitance
30pF
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Package Quantity
2500
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
ECS-SR1-B
Termination
SMD/SMT
Tolerance
0.5%
Compliance
RoHS
Compliant
Datasheet
ECS ECS-SR1-4.00-B-TR Datasheet
Download the complete datasheet for ECS ECS-SR1-4.00-B-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

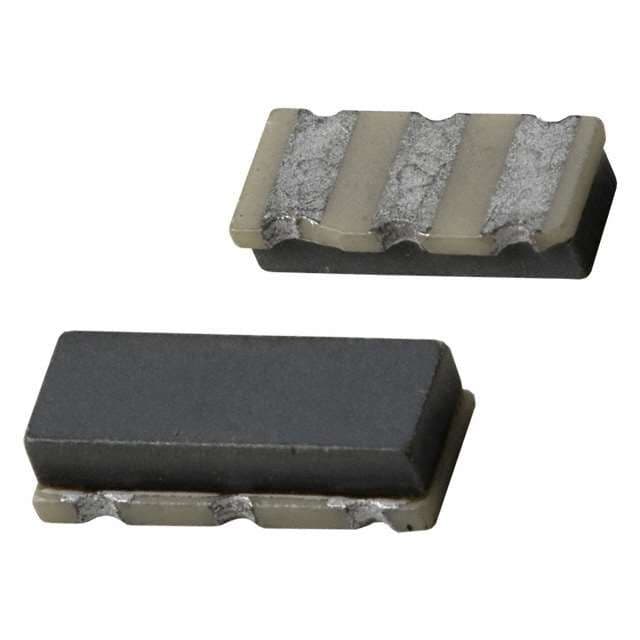

Product Images
