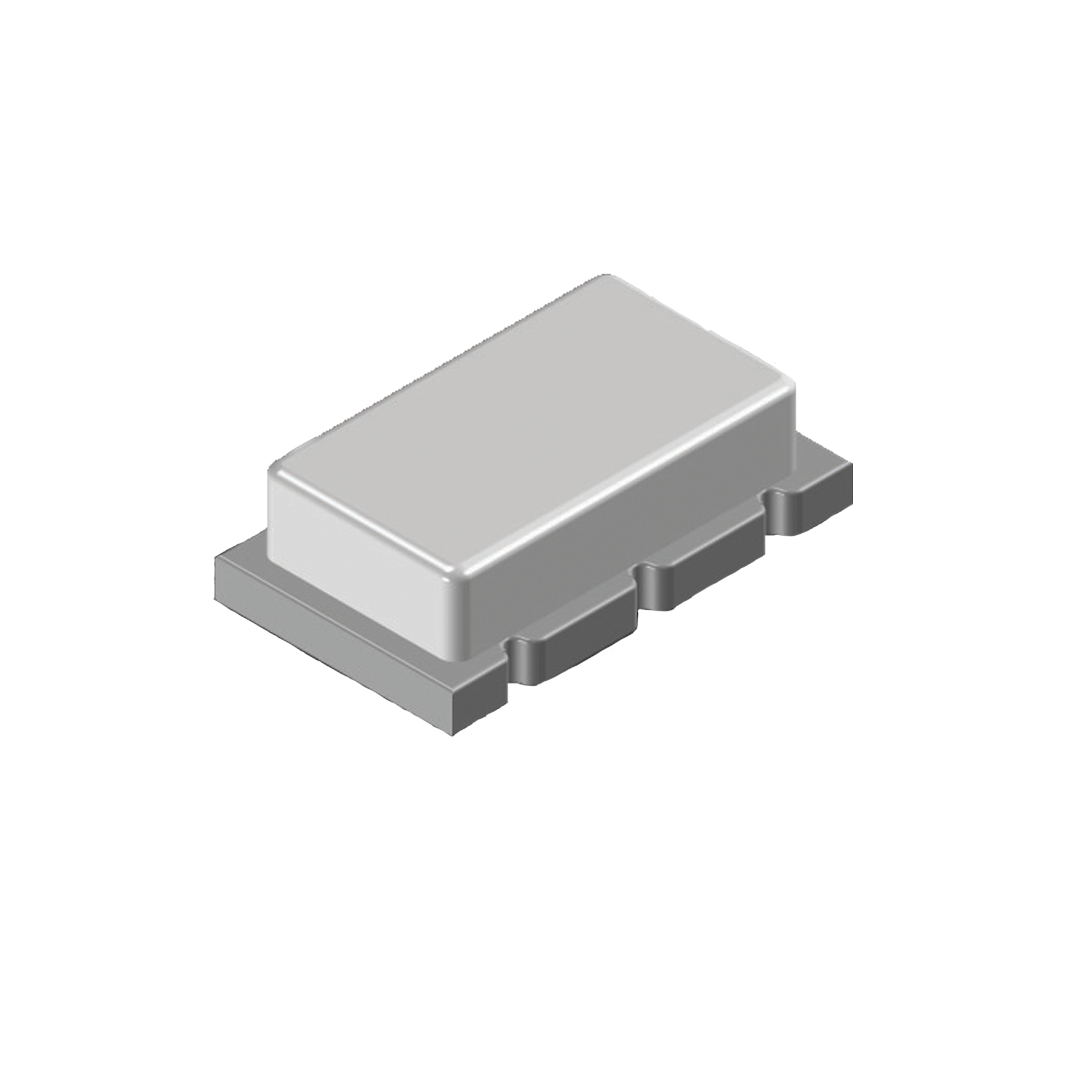

This is a ceramic resonator with a frequency of 4.19MHz, a frequency stability of 0.3%, and a frequency tolerance of 0.5%. It is designed for surface mount applications and has a maximum operating temperature of 80°C and a minimum operating temperature of -20°C. The resonator is lead free and RoHS compliant, packaged in a tape and reel format with 2500 units per reel.
Sign in to ask questions about the ECS ECS-SR1-4.19-B-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
ECS ECS-SR1-4.19-B-TR technical specifications.
| Capacitance | 30pF |
| Package/Case | SMD/SMT |
| Frequency | 4.19MHz |
| Frequency Stability | 0.3% |
| Frequency Tolerance | 0.5% |
| Lead Free | Lead Free |
| Load Capacitance | 30pF |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ECS-SR1-B |
| Termination | SMD/SMT |
| Tolerance | 0.5% |
| RoHS | Compliant |
