Surface mount ceramic resonator operating at 8MHz nominal frequency. Features 30pF capacitance and 0.5% frequency tolerance with 0.3% frequency stability. Designed for surface mounting with a 3-pin configuration. Operates within a temperature range of -20°C to 80°C and is RoHS compliant. Packaged in cut tape.
Frequency8MHz
PackageSMD/SMT
Capacitance30pF
MountingSurface Mount
Quick Jump:
Technical Specifications
ECS ECS-SR1-8.00-B-TR technical specifications.
General
| Capacitance | 30pF |
| Package/Case | SMD/SMT |
| Frequency | 8MHz |
| Frequency Stability | 0.3% |
| Frequency Tolerance | 0.5% |
| Lead Free | Lead Free |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | ECS-SR1-B |
Compliance
| RoHS | Compliant |
Datasheet
ECS ECS-SR1-8.00-B-TR Datasheet
Download the complete datasheet for ECS ECS-SR1-8.00-B-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

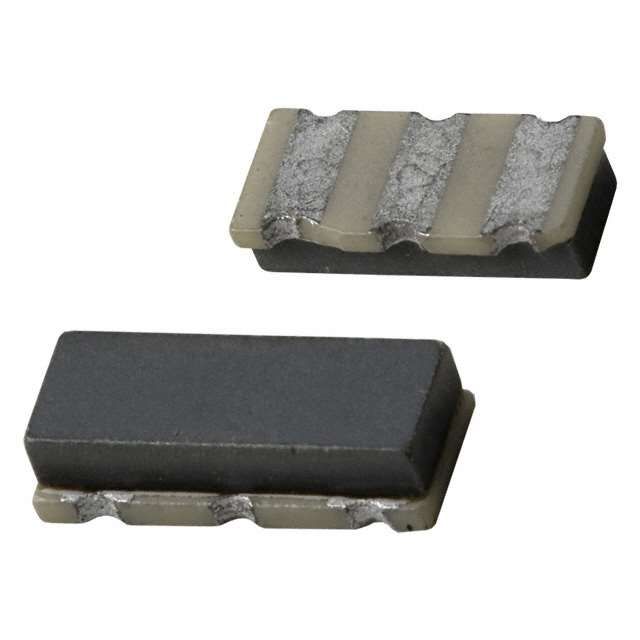

Product Images
