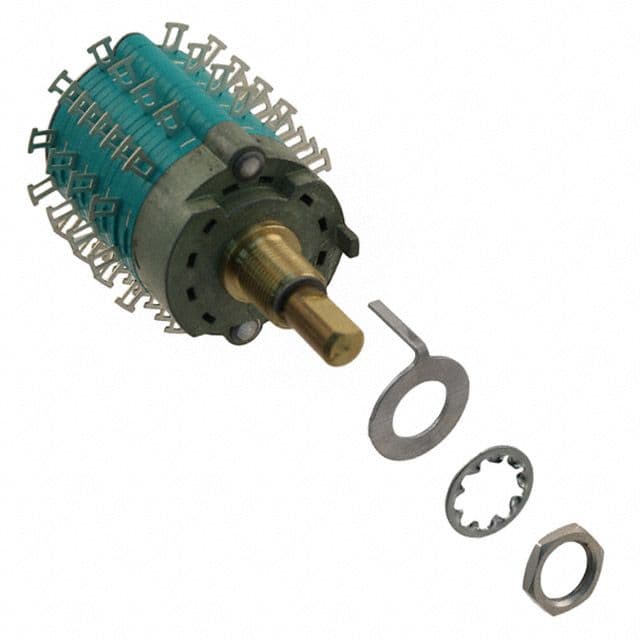

Rotary switch featuring 12 poles and 4 positions per deck across 4 decks, offering a 3P4T throw configuration. Rated for 0.5A at 125VAC and 28VDC, with silver-plated brass contacts and a non-shorting contact style. This panel-mount switch has an adjustable index angle of 30° and a mechanical life of 25,000 cycles. It includes a 12.7mm flatted shaft and solder lug termination, with an IP67 rating for environmental protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Electroswitch C4D1204N-A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Electroswitch C4D1204N-A technical specifications.
| Actuator Length | 12.7mm |
| Contact Material | Brass |
| Contact Plating | Silver |
| Contact Style | Non-Shorting |
| Current Rating | 500mA |
| Depth | 1.644inch |
| Illumination Type | Illuminated |
| Index Angle | 30° |
| Index Stops | Adjustable |
| Lead Free | Lead Free |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 25000Cycles |
| Mount | Panel |
| Number of Decks | 4 |
| Number of Poles | 12 |
| Number of Poles per Deck | 3 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 50 |
| Ratings | IP67 |
| Series | C4 |
| Termination | Lug |
| Throw Configuration | 3P4T |
| Voltage Rating | 28V |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 28V |
| RoHS | Compliant |
