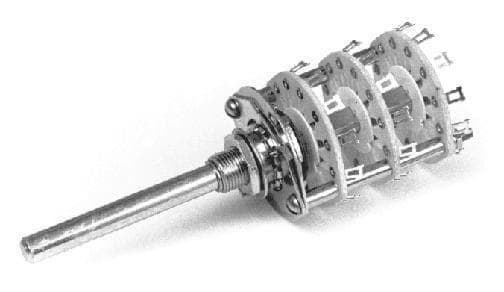

This rotary switch features 3 sections and 2 poles per deck, offering 6 positions with a 60° index angle and adjustable stops. It boasts silver-plated brass contacts with a non-shorting style, rated for 1.5A and up to 115V AC / 28V DC. The ceramic insulation and lug termination ensure reliable performance, with a mechanical life of 25,000 cycles. Designed for panel mounting, this lead-free component has a 6.35mm diameter and a 47.63mm actuator length.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Electroswitch D4C0606N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Electroswitch D4C0606N technical specifications.
| Actuator Length | 47.63mm |
| Contact Material | Brass |
| Contact Plating | Silver |
| Contact Style | Non-Shorting |
| Current Rating | 1.5A |
| Depth | 1.781inch |
| Diameter | 6.35mm |
| Index Angle | 60° |
| Index Stops | Adjustable |
| Insulation Material | Ceramic |
| Lead Free | Lead Free |
| Max Voltage Rating (AC) | 115V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 25000Cycles |
| Mount | Panel |
| Number of Decks | 3 |
| Number of Poles | 2 |
| Number of Poles per Deck | 2 |
| Number of Positions | 6 |
| Orientation | Straight |
| Reach SVHC Compliant | Unknown |
| Series | D4 |
| Termination | Lug |
| Throw Configuration | DP6T, 6P6T |
| Voltage Rating | 28V |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 28V |
| RoHS | Compliant |
